OMNITRON

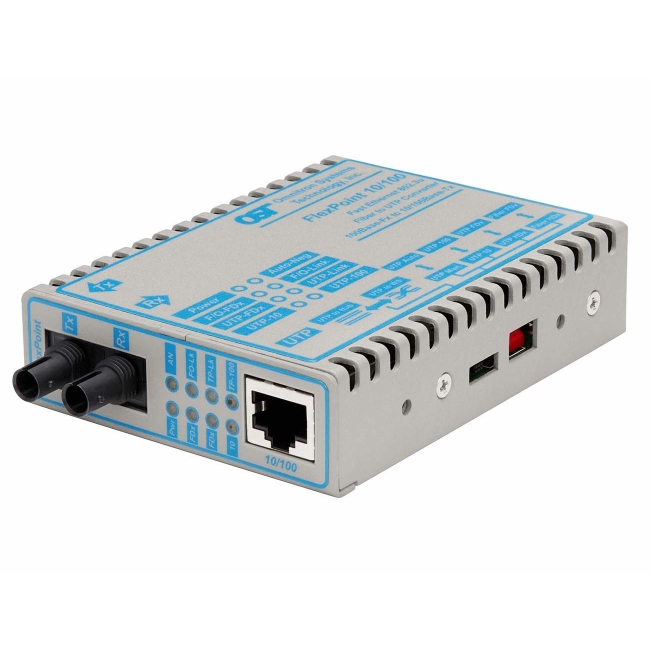

OMNITRON 4342-2 FlexPoint 10/100 Ethernet Fiber Media Converter RJ45 ST Multimode 5km
Mfg Part Number: 4342-2 , Item #: 1659475
Image may not reflect the actual item.
Price: $280.63
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jul 25, 2025
No Sales Tax except these states
, PO and Wire.
The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.
When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.
The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.
Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.
The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.
When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.
The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.
Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.
Main Specification
| General Information | |
| Manufacturer | Omnitron Systems |
| Manufacturer Part Number | 4342-2 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Brand Name | Omnitron Systems |
| Product Line | FlexPoint |
| Product Series | 10/100 |
| Product Model | 4342-x |
| Product Name | FlexPoint 10/100 ST Multimode 5km Univ. AC Powered |
| Package Type | Retail |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 5.01 km |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Ethernet |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-FX |
| Power Description | |
| Input Voltage | 240 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Form Factor | External |
| Form Factor | Wall Mountable |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Weight (Approximate) | 6 oz |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | Input Voltage:
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
