TRANSITION

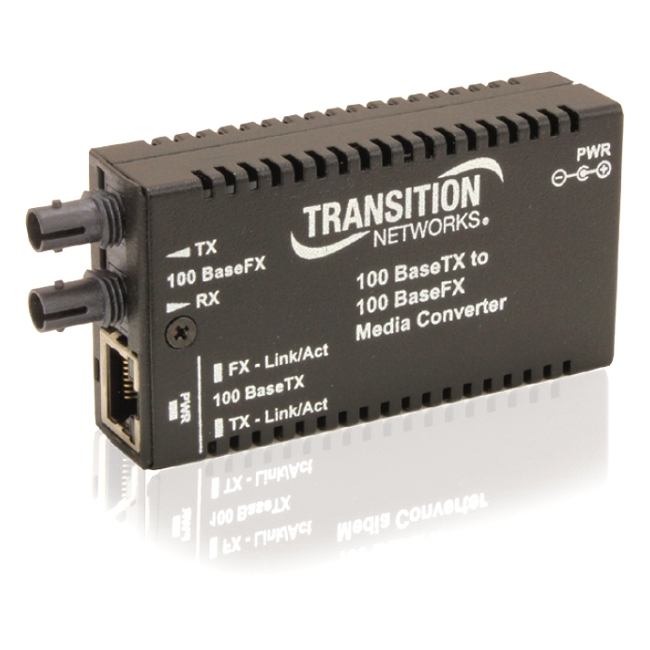

M/E-TX-FX-01(SFP)-NA Transition Networks Mini Fast Ethernet Media Converter
Mfg Part Number: M/E-TX-FX-01(SFP)-NA , Item #: 1572443
Image may not reflect the actual item.
Price: $145.31
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 24, 2025
No Sales Tax except these states
, PO and Wire.
Mini Fast Ethernet Media Converter
100Base-TX to 100Base-FX
The M/E-TX Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Main Specification
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | METXFX01SFPNA |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Transition Networks |
| Product Series | M/E-TX |
| Product Model | M/E-TX-FX-01(SFP) |
| Product Name | M/E-TX-FX-01(SFP) Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 0.10 km |
| I/O Expansions | |
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-X |
| Network Technology | 100Base-TX |
| Power Description | |
| Power Source | AC/DC |
| Input Voltage | 12 V DC |
| Power Consumption | 2.60 W |
| Physical Characteristics | |
| Form Factor | Standalone |
| Form Factor | Wall Mountable |
| Form Factor | DIN Rail Mountable |
| Form Factor | Rack-mountable |
| Height | 0.9" |
| Width | 1.8" |
| Depth | 3.3" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Data |
| Application/Usage | Network |
| Additional Information | 100Base-TX (RJ-45) [100m/328 ft.] to 100Base-X SFP Slot (empty) |
| Certifications & Standards | Wall Mount Power Supply, UL Listed, cUL Listed (Canada) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
