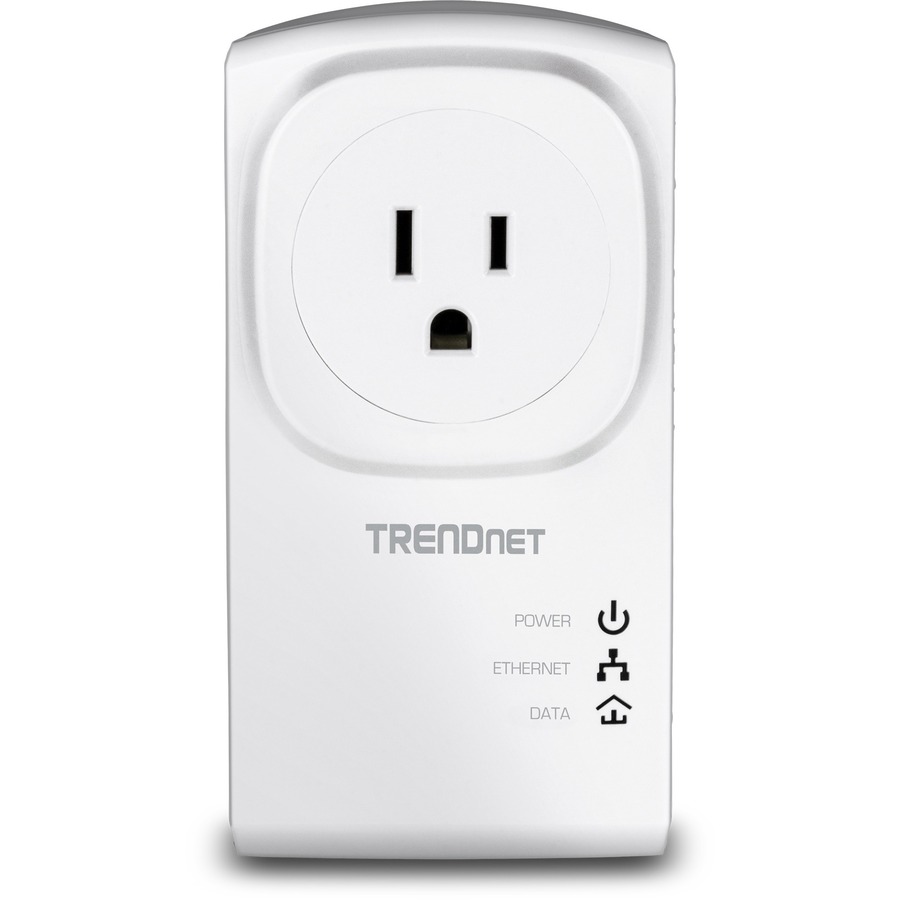

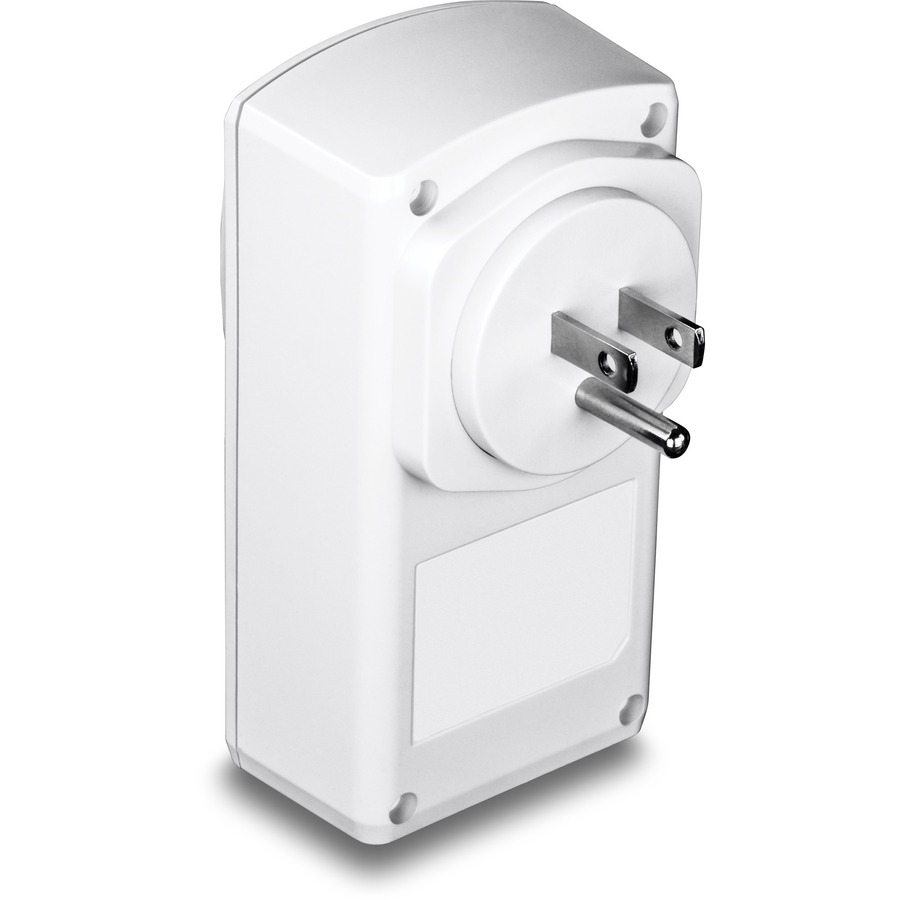

TPL-407E2K TRENDnet Powerline 500 AV Nano Adapter Kit with Built-In Outlet

The Powerline 500 AV Adapter Kit with Built-In Outlet, model TPL-407E2K, uses existing electrical lines to create a high-speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. The compact form factor saves space and offers an additional electrical outlet.

• Includes two TPL-407E adapters; Two adapters are needed to start a network
• NDAA COMPLIANT: With our NDAA compliant Powerline Ethernet Adapters, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• MANUFACTURER PROTECTION: We stand by the quality of our products.The TPL-407E2K Powerline 500 AV Adapter Kit with Built-In Outlet is backed and supported with 3 years of TRENDnet Manufacturer Protection.
• PLUG IN INSTALL: Simply plug in TRENDnet adapters! The encrypted Powerline signal auto-connects over an existing electrical system.

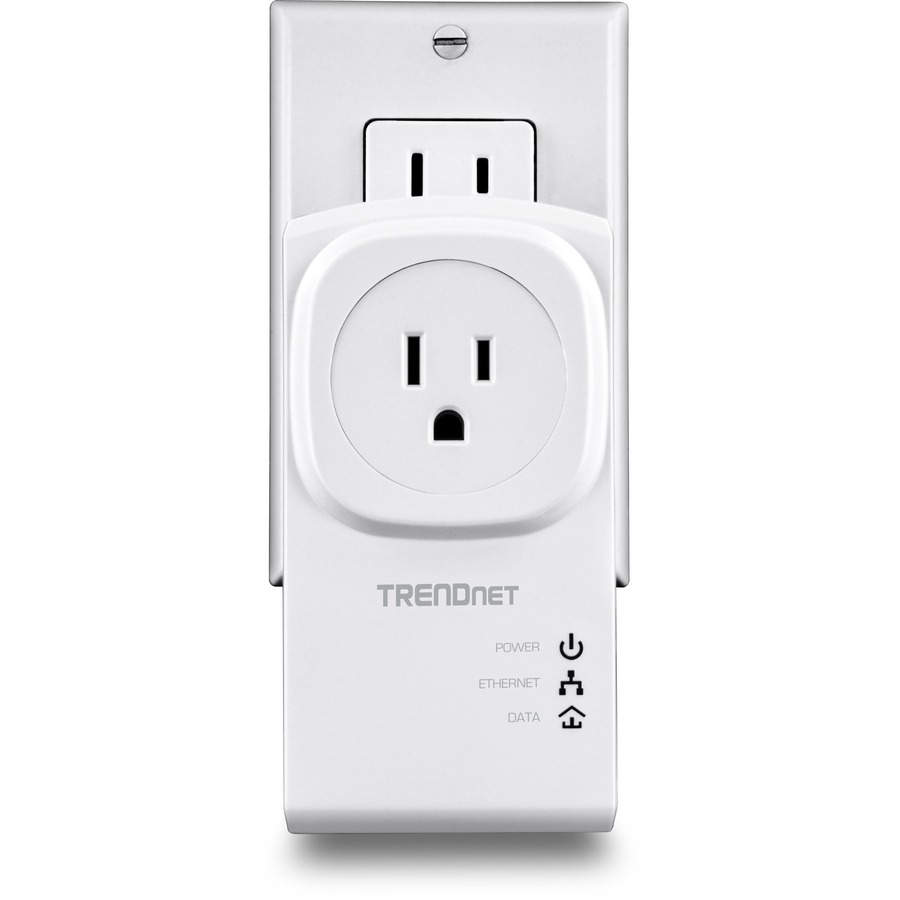

• BUILT-IN OUTLET: With so many devices needing power, you don't lose an outlet when plugged in. Plug the adapter into an outlet, then plug a power strip into the adapter.
• NETWORK STABILITY: Ultra-stable Powerline networking is preferred by internet service providers.
• CONNECTIVITY TECHNOLOGY: Ethernet; Noise Filter: Advanced electrical noise filter boosts performance
• EASY INSTALLATION: Simply plug in the adapters
• CROSS COMPATIBLE: Backward compatible with all Powerline 600, 500, and 200 adapters

More from the Manufacturer

General Information
Manufacturer	TRENDnet
Manufacturer Part Number	TPL-407E2K
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Model	TPL-407E2K
Product Name	500 AV Compact Powerline Adapter Kit /w Pass Through
Product Condition	New
Packaged Quantity	2
Product Type	Powerline Network Adapter
Technical Information
Modulation	256QAM
Modulation	8QAM
Modulation	BPSK
Modulation	DBPSK
Modulation	QPSK
Modulation	64QAM
Modulation	OFDM
Modulation	1024QAM
Minimum Operating Frequency	2 MHz
Maximum Operating Frequency	68 MHz
Media & Performance
Powerline Data Transfer Rate	500 Mbit/s
Maximum Distance Supported	0.30 km
Wireless Specifications
Wireless LAN	No
Interfaces/Ports
Network (RJ-45)	Yes
Phone Line (RJ-11)	No
BNC	No
USB	No
PoE (RJ-45) Port	No
Audio Line In	No
Audio Line Out	No
Number of Network (RJ-45) Ports	1
Network & Communication
Ethernet Technology	Fast Ethernet
Powerline Transmission Standard	HomePlug AV
Power Description
Input Voltage	220 V AC
Input Voltage	110 V AC
Physical Characteristics
Height	3"
Width	7"
Depth	8"
Weight (Approximate)	1.87 lb
Miscellaneous
Package Contents	Powerline 500 AV Nano Adapter Kit with Built-In Outlet Quick Installation Guide CD-ROM (Utility & User's Guide) 2 x Network Cables (1.5 m / 5 ft.)
Certifications & Standards	CE FCC
Country of Origin	Taiwan
NDAA Compliant	Yes
Warranty
Limited Warranty	3 Year
