CISCO

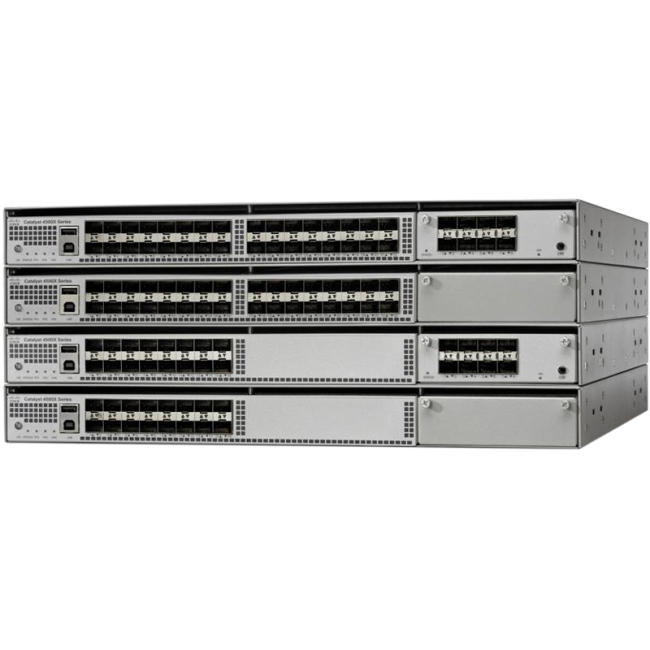

Cisco Catalyst WS-C4500X-40X-ES Layer 3 Switch

Mfg Part Number:  WS-C4500X-40X-ES
Image may not reflect the actual item.
Price: $51,212.45 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 05, 2025
No Sales Tax except these states
, PO and Wire.

Cisco Catalyst 4500-X Series provides scalable, fixed-campus aggregation solutions in space-constrained environments. The solution provides flexibility to build desired port density through two versions of base switches along with optional uplink module. Both the 32- and 16-port versions can be configured with optional network modules and offer similar features. The Small Form-Factor Pluggable Plus (SFP+) interface supports both 10 Gigabit Ethernet and 1 Gigabit Ethernet ports, allowing customers to use their investment in 1 Gigabit Ethernet SFP and upgrade to 10 Gigabit Ethernet when business demands change, without having to do a comprehensive upgrade of the existing deployment. The uplink module is hot swappable.

Main Specification
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C4500X-40X-ES
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Line Catalyst
Product Series 4500-X
Product Model WS-C4500X-40X-ES
Product Name Catalyst WS-C4500X-40X-ES Layer 3 Switch
Product Type Layer 3 Switch
Interfaces/Ports
Token Ring Port No
LRE Port No
Bypass No
Modular No
I/O Expansions
Total Number of Expansion Slots 40.0
Expansion Slot Type SFP+
Shared SFP Slot No
Number of SFP+ Slots 40
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
  • VLAN
  • IGMP
  • QoS
  • RMON 1,2
  • DHCP
Reliability
MTBF 199720 Hour
Power Description
PoE (RJ-45) Port No
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Form Factor Desktop
Miscellaneous
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.3ad (LACP)
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3ae
  • IEEE 802.1s
  • IEEE 802.1x-Rev
  • CE
  • UL 60950-1 Second Edition
  • CAN/CSA-C22.2 No. 60950-1 Second Edition
  • EN 60950-1 Second Edition
  • IEC 60950-1 Second Edition
  • AS/NZS 60950-1
  • 47CFR Part 15 (CFR 47) Class A
  • AS/NZS CISPR22 Class A
  • CISPR22 Class A
  • EN55022 Class A
  • ICES003 Class A
  • VCCI Class A
  • EN61000-3-2
  • EN61000-3-3
  • KN22 Class A
  • CNS13438 Class A
  • EN55024
  • CISPR24
  • EN300386
  • KN24
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty Lifetime
