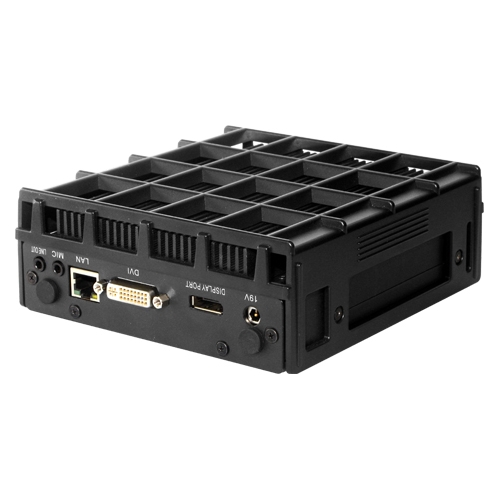

The DT135D features the integration of an energy efficient AMD Fusion dual core CPU and AMD Hudson graphic processor within a compact, robust and efficient platform.
| General Information | |
| Manufacturer | DT Research, Inc |
| Manufacturer Part Number | 135DL-022 |
| Manufacturer Website Address | http://www.dtresearch.com |
| Brand Name | DT Research |
| Product Line | WebDT |
| Product Model | DT135D |
| Product Name | WebDT DT135D Thin Client |
| Product Type | Thin Client |
| Processor | |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 1.60 GHz |
| Memory | |
| Standard Memory | 2 GB |
| Maximum Memory Supported | 4 GB |
| Flash Memory | 8 GB |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express Slots | 1 |
| Interfaces/Ports | |
| DVI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 4 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Operating System | |
| Operating System | Linux |
| Software | |
| Software Included | WebDT Device Manager Software |
| Power Description | |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Physical Characteristics | |
| Height | 2.2" |
| Width | 5.8" |
| Depth | 6.5" |
| Weight (Approximate) | 2.90 lb |
| Miscellaneous | |
| Package Contents |
|
| Compatibility |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Chassis | |
| Dimensions (WxDxH) | 55mm x 148mm x 165.1mm |
| System Fan | Fanless |
| Chassis Construction | Aluminum with steel |
| MotherBoard | |
| Processor Brand | AMD |
| Processor Type | AMD Fusion Dual Core |
| Frequency | 1.6 GHz |
| Cache Memory | - |
| Chipset | - |
| Memory Form Factor | SO-DIMM |
| Memory Included | 2 GB |
| Memory Max | 2 GB |
| Memory Type | DDR3 |
| Storage | |
| SATA | - |
| SD Card | - |
| Cfast | - |
| mSATA | - |
| Compact Flash | 1 |
| Remote Monitoring | |
| IPMI | - |
| I/O Interface | |
| Interface Type | Ethernet, USB, RS232, Wireless |
| PS2 (KB/MS) | - |
| USB 2.0 | 4 |
| USB 3.0 | - |
| Ethernet | 1 x RJ45 GBE LAN |
| RS-232 | 2 x DB9 |
| RS-422/485 | - |
| CAN-bus | - |
| Wireless | Optional |
| Cellular | - |
| Special Function Slot | - |
| Display Type | VGA, DVI |
| Resolution (VGA) | 1920 x 1080 |
| Resolution (DVI) | 1920 x 1080 |
| Resolution (HDMI) | - |
| Resolution (S-Video) | - |
| Digital I/O/Relay | - |
| GPIO | - |
| Audio | 1 x Line-out, 1 x Mic-in |
| Expansions | |
| PCIe Mini | - |
| PCI | - |
| PCIe | 1 |
| PCI/104 | - |
| PCI/104 Plus | - |
| Power Input | |
| Power Input Type | Single DC / DC Jack |
| Operating Supply Voltage Range | 19V |
| Power Consumption | - |
| Reliability | |
| Mounting | Wallmount, VESA |
| Operating Temp. Min. | 0C to 4.99C |
| Operating Temp. Max. | 40C to 44.99C |
| Operating Vibration | - |
| Shock during Operating | - |
| Standards and Certifications | CE/FCC/C-Tick/RoHS |
