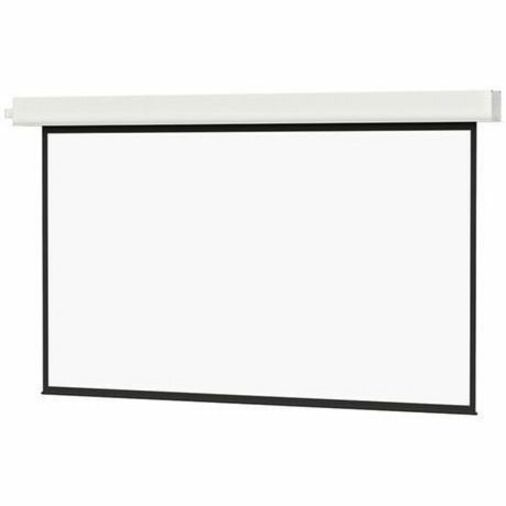

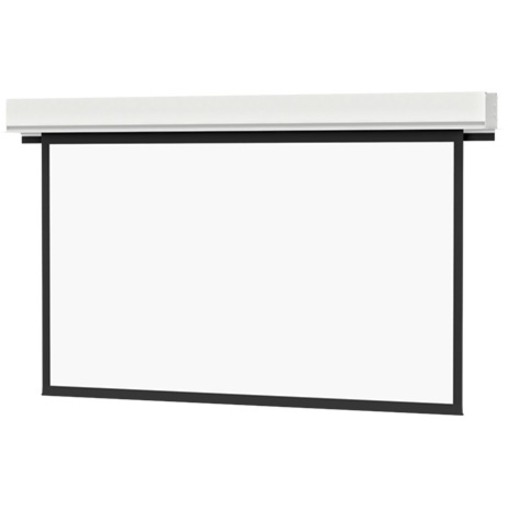

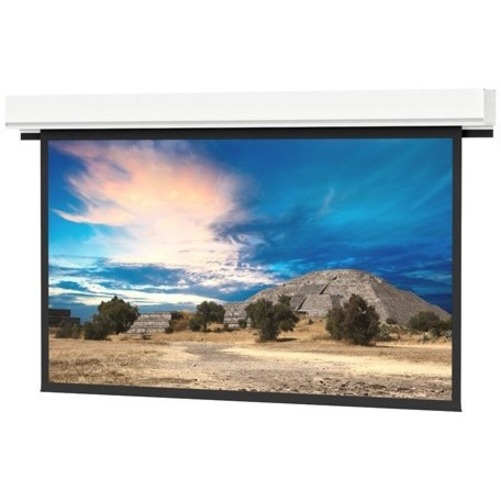

70103 Da-Lite Advantage Deluxe Electrol Electric Projection Screen - 189" - 16:10 - Ceiling Mount

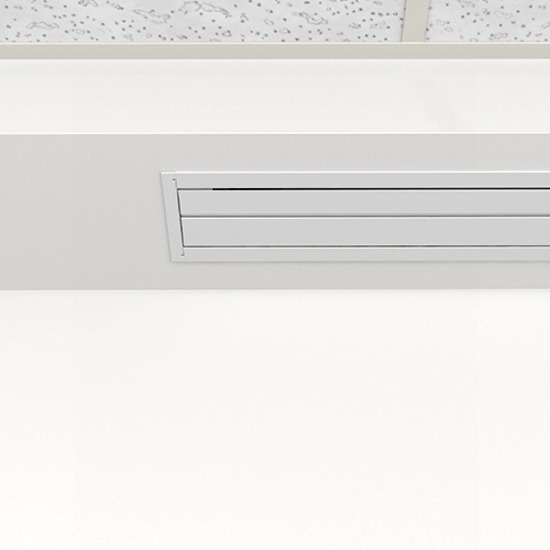

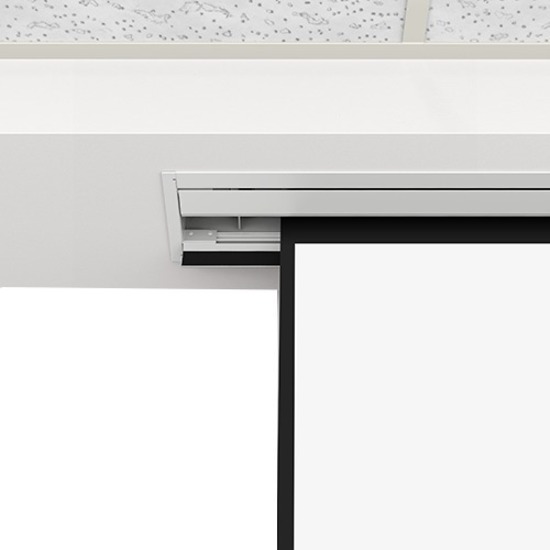

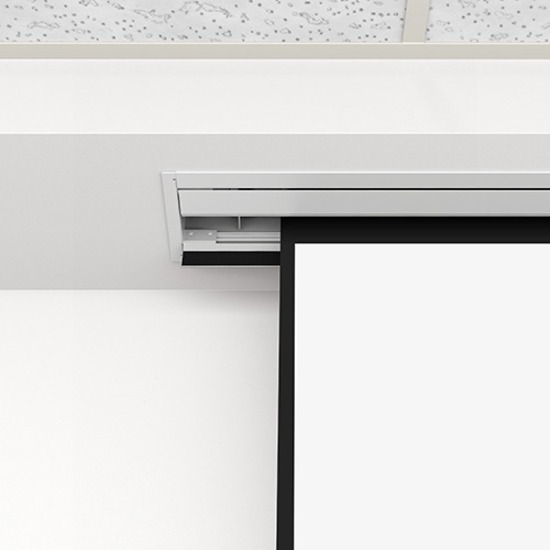

The Advantage ceiling-recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the large format screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the large format screen housing to the structure above the drop ceiling. Da-Lite's new cable drop feature, SightLine, available with the tried-and-true Advantage (up to 184in Diagonal in 16:9 and up to 189in Diagonal in 16:10) electric screen, gives the impression of a floating screen. A suspension system in its single roller design features 3 or 4 thin cables eliminating the need for black drop - the black border above the projection screen. While the market is accustomed to specifying drop distance upon ordering, now vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 70in between the ceiling and the top of the screen, making ordering a snap. What's more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Enhanced aesthetics, painless ordering, smooth installation and future-proofing for height adjustability - this is the fine line between status quo and jaw drop.

General Information
Manufacturer	Legrand Group
Manufacturer Part Number	70103
Manufacturer Website Address	http://www.legrand.us
Brand Name	Da-Lite
Product Line	Advantage
Product Name	Advantage Projection Screen
Product Type	Projection Screen
Technical Information
Diagonal Image Size	189"
Screen Height	100"
Screen Width	160"
Screen Fabric	Matte White
Aspect Ratio	16:10
Projection Formats	Widescreen
Screen Folding Mechanism	Electric
Physical Characteristics
Mount Type	Recessed/In-Ceiling Mount
Color Family	Black
Product Color	Black
Miscellaneous
Package Contents	Advantage Projection Screen Decora-style, three-button wall switch
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Certification	GREENGUARD Gold
Environmental Certification	GREENGUARD
Warranty
Limited Warranty	5 Year
