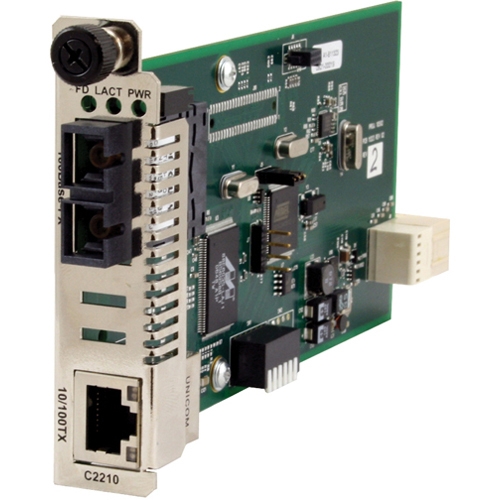

The ION C2210 is a media converter module that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. The ION C2210 is a manageable device when installed in a managed ION chassis.
General Information | |
Manufacturer | Lantronix, Inc |
Manufacturer Part Number | C22101011 |
Manufacturer Website Address | http://www.lantronix.com |
Brand Name | Transition Networks |
Product Line | ION |
Product Series | C2210 |
Product Model | C2210-1011 |
Product Name | ION C2210-1011 Transceiver/Media Converter |
Product Type | Transceiver/Media Converter |
Interfaces/Ports | |
Total Number of Ports | 2 |
Network (RJ-45) | Yes |
Number of Network (RJ-45) Ports | 1 |
Number of ST Ports | 1 |
ST Port Type | Duplex |
Media & Performance | |
Media Type Supported | Twisted Pair |
Media Type Supported | Optical Fiber |
Fiber Mode Supported | Multi-mode |
Fiber Optic Cable Wavelength | 0.1 mil |
Maximum Data Transfer Rate | 100 Mbit/s |
Maximum Distance Supported | 2 km |
Network & Communication | |
Ethernet Technology | Fast Ethernet |
Network Technology | 10/100Base-TX |
Network Technology | 100Base-FX |
Power Description | |
Power Source | DC |
Power Consumption | 2.50 W |
Physical Characteristics | |
Height | 3.4" |
Width | 0.9" |
Depth | 6.5" |
Weight (Approximate) | 1 lb |
Miscellaneous | |
TAA Compliant | Yes |
Warranty | |
Limited Warranty | Lifetime |
