STARTECH

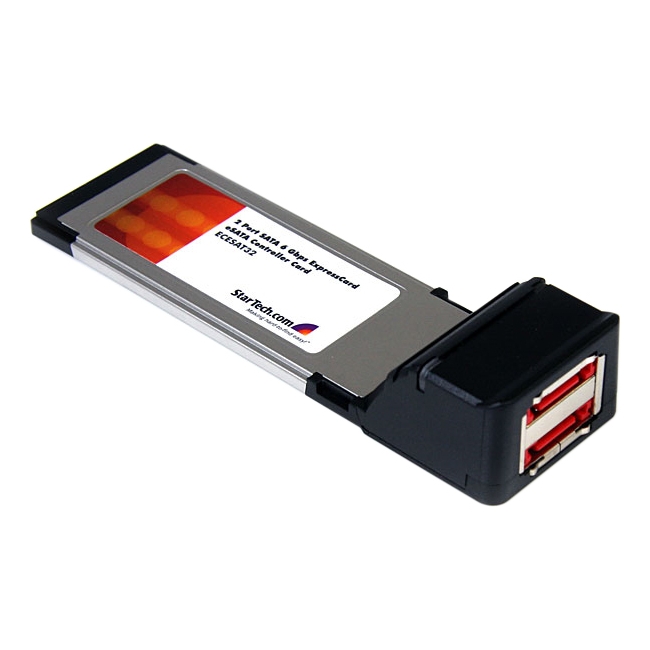

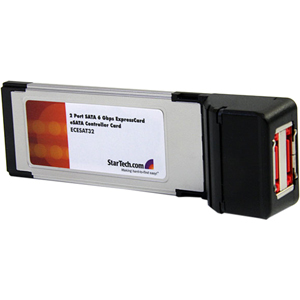

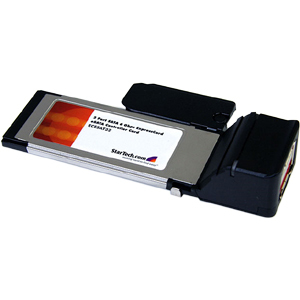

ECESAT32 StarTech.com 2 Port SATA 6 Gbps ExpressCard eSATA Controller Card

Mfg Part Number:  ECESAT32
Image may not reflect the actual item.
Price: $67.19 + Free Shipping
Quantity:
More to Come
Last Updated: May 11, 2025
No Sales Tax except these states
, PO and Wire.

Add two SATA 6Gbps eSATA ports to Laptop for high speed access to large external storage solutions. The ECESAT32 2 Port ExpressCard eSATA Controller Card (6 Gbps) offers simple connectivity between a laptop computer with ExpressCard slot and eSATA 3.0 devices - a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving.

With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the ExpressCard adapter features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs.

The Expresscard is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a laptop through a single external SATA connection.

More from the Manufacturer

More from the Manufacturer

Main Specification
General Information
Manufacturer StarTech.com
Manufacturer Part Number ECESAT32
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 2 Port ExpressCard eSATA 6 Gbps Controller Card
Product Type SATA Controller
Technical Information
Host Interface ExpressCard/34
Controller Type Serial ATA/600
Interfaces/Ports
Total Number of SATA Ports 2

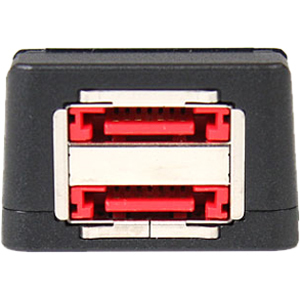

Number of SATA Ports (External) 2
Physical Characteristics
Height 1.3"
Width 4.4"
Thickness 0.8"
Form Factor Plug-in Module
Weight (Approximate) 1.34 oz
Miscellaneous
Package Contents
  • 2 Port ExpressCard eSATA 6 Gbps Controller Card
  • Bracket for 34mm to 54mm card slot
Platform Supported PC
Additional Information
  • Includes a bracket for adapting the 34mm card to fit into a 54mm card slot.
  • Twice the speed of SATA II (3Gbps).
Environmentally Friendly Yes
Warranty
Limited Warranty 2 Year
product information
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
