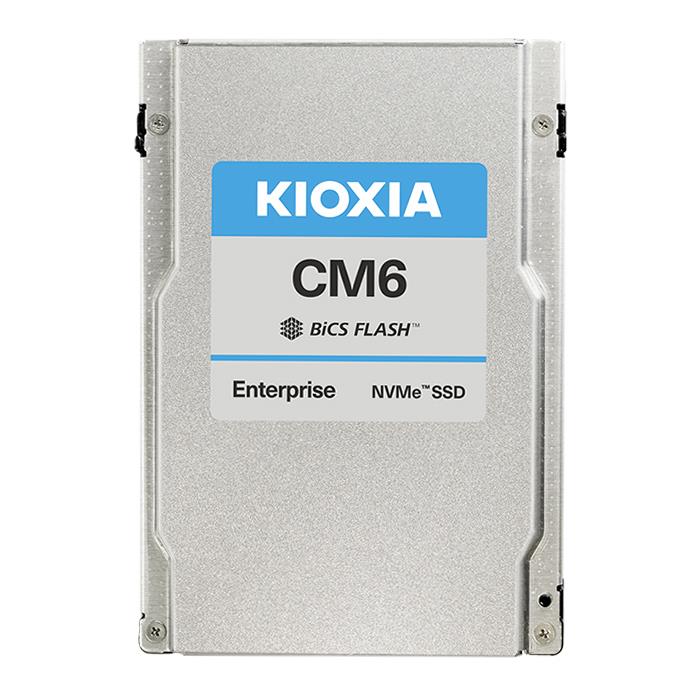

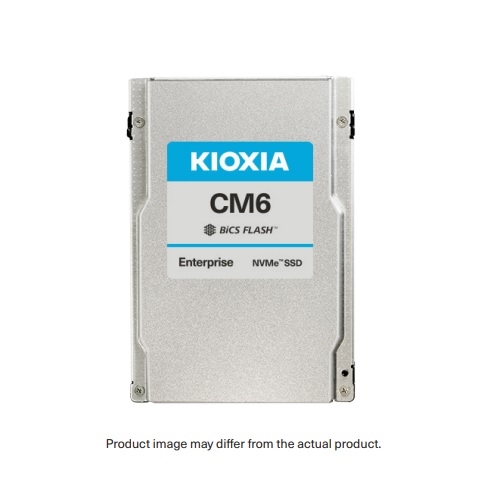

KIOXIA CM6-R series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe^® 4.0 and NVMe™ 1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read), with maximum power consumption of 25 W.

Featuring KIOXIA Corporation's 96-layer BiCS FLASH™ 3D TLC memory, the CM6-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.

Key Features

• PCIe^®4.0, NVMe™ 1.4 specification compliant
• Form factor: 2.5-inch, 15mm Z-height
• Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ 96-layer 3D TLC memory
• SFF-TA-1001 conformant (U.3)
• Dual-port design for high availability applications
• 6th generation, two-die failure recovery and double parity protection
• High performance with lower power consumption
• Power loss protection (PLP) and end-to-end data protection
• Suited for 24x7 enterprise workloads
• Security options: SIE, SED, FIPS 140-2
• Six power mode settings

Key Applications

• Software defined storage and virtualization
• Data warehousing
• Online transaction processing (OLTP)
• (transactional and relational databases)
• Business intelligence
• Artificial intelligence and machine learning

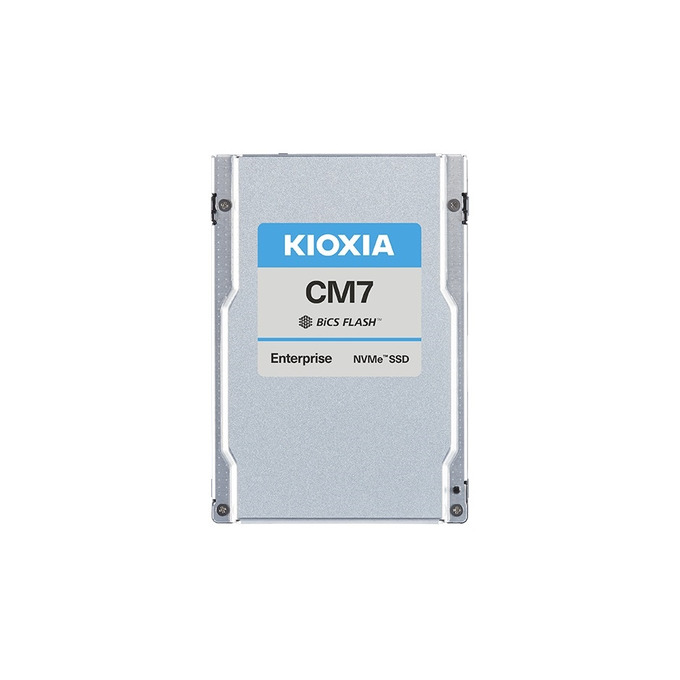

KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe^®5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.

Key Features

• PCIe^® 5.0, NVMe™ 2.0 specification compliant
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15 mm thickness
• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
• SFF-TA-1001 conformant (U.3)
• Dual-port design for high availability applications
• High performance with lower power consumption
• Power loss protection (PLP) and end-to-end data protection
• Suited for 24x7 enterprise workloads
• Security options: SIE, SED, FIPS SED

Key Applications

• Software defined storage and virtualization
• Data warehousing
• Online transaction processing (OLTP)
• (transactional and relational databases)
• Business intelligence
• Artificial intelligence and machine learning

Enterprise NVMe™ Read Intensive SSD

KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe^®5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.

Key Features

• PCIe^® 5.0, NVMe™ 2.0 specification compliant
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15 mm thickness
• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
• SFF-TA-1001 conformant (U.3)
• Dual-port design for high availability applications
• High performance with lower power consumption
• Power loss protection (PLP) and end-to-end data protection
• Suited for 24x7 enterprise workloads
• Security options: SIE, SED, FIPS SED

Key Applications

• Software defined storage and virtualization
• Data warehousing
• Online transaction processing (OLTP)
• (transactional and relational databases)
• Business intelligence
• Artificial intelligence and machine learning

KIOXIA PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.

Key Features

• 24G SAS interface with single/dual-port support
• Capacities from 1.92 TB to 30.72 TB
• Up to 720K random read IOPS (4 KiB) in dual-port mode
• 2.5-inch form factor, 15 mm thickness
• 1 DWPD with 100 % Random Write Workload
• Power Loss Protection and End-to-End Data Protection, including T10 DIF
• Security options: SIE, SED, FIPS SED
• 5-year limited warranty

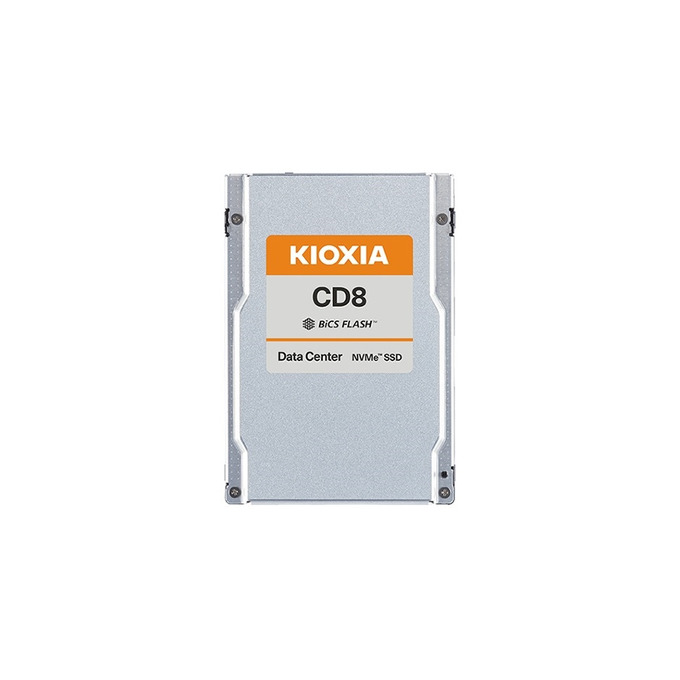

KIOXIA CD8-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe^®4.0 (16 GT/s x4) interface, the CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Key Features

• PCIe^®4.0, NVMe™ 1.4 specification compliant
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15mm thickness
• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
• Single-port design, optimized for data center class workloads
• Consistent performance and reliability for demanding 24x7 environments
• Designed for high-density storage deployments
• Power loss protection (PLP) and end-to-end data correction
• Security options: SIE, SED

Key Applications

• Hyperscale
• IoT and big data analytics
• Online transaction processing (OLTP)
• (transactional and relational databases)
• Virtualized environments
• Streaming media and content delivery networks

Data Center NVMe™ Read Intensive SSD

KIOXIA CD8-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe^®4.0 (16 GT/s x4) interface, the CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

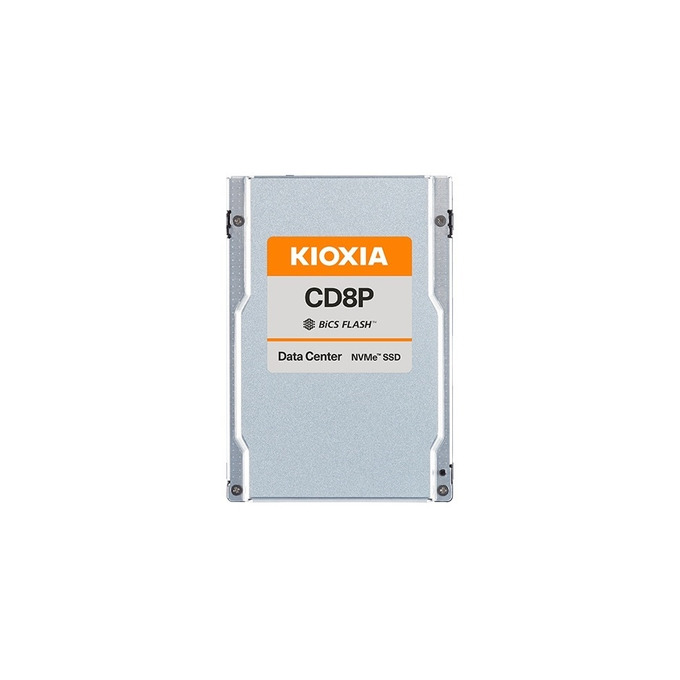

KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe^®5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe^®4.0 SSDs (KIOXIA CD8-R Series).

Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 30.72 TB, making them well-suited for hyperscale data center applications.

Key Features

• PCIe 5.0, NVMe™ 2.0 specification compliant
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15 mm thickness
• Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ generation 5 TLC flash memory
• Single-port design, optimized for data center class workloads
• Consistent performance and reliability for demanding 24x7 environments
• Designed for high-density storage deployments
• Power loss protection (PLP) and end-to-end data correction
• Security options: SIE, SED
