ADA-compliant thin profile wall mounting bracket for Poly Studio E70 with less than 4" protrusion from the wall with the camera attached. Easily mount to carts or monitor arms with the 75mm or 100mm VESA mounting patterns or connect to duplex electrical boxes with convenient leveling slots.

Key Features:

• ADA-compliant design
• Powder-coated heavy gauge steel construction
• 75mm and 100mm VESA mounting patterns
• Duplex electrical box mounting pattern with leveling slots

This Package Includes:

• Thin Profile Camera Mount
• 1/4-20 fastener

The EasyIP Ceiling Speaker D with Dante networked audio is optimized for easy installation and accurate voice reproduction. Ideal for conference rooms and classrooms.

Key Features:

• Dante networked audio
• 2-way speaker optimized for vocal clarity
• Ceiling or wall mountable
• Magnetic speaker grille and RJ45, Cat.5 cable connection
• Included ceiling tile brace

The Vaddio EasyIP Ceiling Speaker D is quick and easy to install, featuring a magnetically attached grille for a streamlined appearance. The speaker is optimized so voices sound clear and natural. The 2-way speaker is built with a specially designed coaxially mounted cone tweeter and a high-performance 4" metalized cone woofer with a neoprene driver surround for durability.

The active, amplified flush-mounting speaker can be installed in a ceiling or wall up to 1-3/8 inches thick and comes with a lightweight ceiling tile brace. The air-sealed steel enclosure features a recessed cable cavity and an RJ-45 connection. The magnetically attached white metal grille gives a streamlined appearance while providing easy access to the swivel-out mounting tabs.

• USB Port Powered
• No external power source needed
• Supports USB 2.0, 3.0, 3.1 and 3.2
• Plenum Rated

This shielded active optical fiber cable supports the full bandwidth of USB 3.2 Gen 2 and can be used to extend all USB 3.2 Gen 2 products. The cable is rated SuperSpeed and carries up to 10 Gbps.

It is conveniently port-powered and does not utilize any repeater hubs, making it easier to install through conduits. The cable is rugged, flexible and is thinner and lighter than conventional copper cables.

This USB cable is plug and play and requires no drivers - ideal for most Bring Your Own Device (BYOD) environments. It is compatible with IntelliSHOT, ConferenceSHOT and RoboSHOT cameras and other USB 3.0 conferencing devices like our AV Bridge Mini, AV Bridge 2x1, and AV Bridge MatrixMIX.

Its unique composite design is resistant to EMI/RFI interference and is CMP plenum-rated.

Please note this cable does not carry enough power to charge most USB endpoints and is intended for transporting high quality video and audio signals. This cable is backwards compatible with signals less than USB 3.0 including USB 2.0.

Introducing the RoboSHOT Elite Series - Vaddio's next generation of professional cameras. Designed with a 1/2.5-type Exmor R CMOS sensor, RoboSHOT streaming cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera's streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.

The RoboSHOT 30E cameras have a 20x optical zoom and have an additional 10x of IntelliZoom^TM Image Processing. IntelliZoom image processing technology lets you zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 30E camera's powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.

The RoboSHOT 30E cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship.

Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.

The OneLINK Bridge system connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom.

Along with the bridging capabilities, the system's OneLINK Bridge Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.

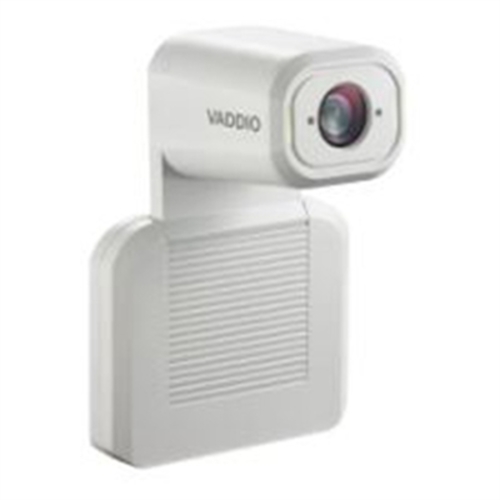

The IntelliSHOT-M auto-tracking camera is Vaddio's first Certified for Microsoft Teams camera. Advanced IntelliFrameTM technology makes the IntelliSHOT-M camera ideal for auto- tracking presenters in boardrooms or perfectly framing a group of coworkers in a conference room. Pro AV Integrators can adjust the experience based on the room conditions and user's preferences. The IntelliSHOT-M camera provides a consistent, repeatable, and high-quality Microsoft Teams experience from Vaddio.

Other cameras on the market rely on facial recognition, and can fail with facial coverings or falsely identify objects like posters on the wall as people. IntelliFrame uses a combination of exceptionally sensitive motion detection and complex algorithms to deliver smooth, accurate and reliable participant framing.

AV Integrators can now promise personalized video performance with every installation. Because IntelliFrame is adjusted via the web interface, it can be fine-tuned remotely by support staff.

The IntelliSHOT-M is a great choice for conference rooms as people expect great video when joining their Microsoft Teams Room. The IntelliSHOT-M features 30x zoom making it a great choice for larger conference rooms or venues.

The IntelliSHOT is PoE+ powered and the network connectivity allows you to manage and control the IntelliSHOT via our web-based user interface.

The EasyIP AMP D is a half-rack PoE+ powered amplifier featuring Dante networked audio. A single ethernet cable provides power and a Dante audio signal to the EasyIP AMP D and the amplifier's speaker output provides up to 25 watts of power to a connected speaker.

Key Features:

• Brings an analog speaker into your EasyIP or Dante environment
• Dante networked audio - manage with the Dante Controller application from Audinate
• 1 RU, half-rack chassis
• PoE+ or PoE power; adaptive output - 25 W if powered by an EasyIP Switch or other PoE+ source, 15 W if powered by a PoE source

The EasyIP AMP D features one PoE+ network connection and one powered stereo speaker output making it the ideal solution for incorporating a passive speaker with an EasyIP or Dante audio system. By providing digital signal transmission over the network, Dante makes installing any size project easy. The EasyIP AMP D is part of the expanding family of Vaddio's EasyIP AV-over-IP ecosystem.

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System combines a powerful Ultra HD PTZ camera with Vaddio's robust OneLINK HDMI for clean camera extension.

The RoboSHOT 20 Ultra HD has pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces for applications such as higher education, corporate broadcast and houses of worship.

Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.

With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing.

Drop-down ceiling mount compatible with Vaddio ePTZ camera systems.

The IntelliSHOT-M auto-tracking camera is Vaddio's first Certified for Microsoft Teams camera. Advanced IntelliFrameTM technology makes the IntelliSHOT-M camera ideal for auto- tracking presenters in boardrooms or perfectly framing a group of coworkers in a conference room. Pro AV Integrators can adjust the experience based on the room conditions and user's preferences. The IntelliSHOT-M camera provides a consistent, repeatable, and high-quality Microsoft Teams experience from Vaddio.

Other cameras on the market rely on facial recognition, and can fail with facial coverings or falsely identify objects like posters on the wall as people. IntelliFrame uses a combination of exceptionally sensitive motion detection and complex algorithms to deliver smooth, accurate and reliable participant framing.

AV Integrators can now promise personalized video performance with every installation. Because IntelliFrame is adjusted via the web interface, it can be fine-tuned remotely by support staff.

The IntelliSHOT-M is a great choice for conference rooms as people expect great video when joining their Microsoft Teams Room. The IntelliSHOT-M features 30x zoom making it a great choice for larger conference rooms or venues.

The IntelliSHOT is PoE+ powered and the network connectivity allows you to manage and control the IntelliSHOT via our web-based user interface.

The Twin Mono AMP is an 8 Ohm 30 Watt mono power audio amplifier with a single differential input feeding two amplified outputs, each capable of driving into loads as low as 4 ohm. Ensure remote participants in small and medium conference rooms or classrooms are heard in collaboration and conferencing environments.

Key Features:

• Two channels at 15 W per channel
• Additional connectors provided for making custom length cables
• Durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation
• LED power indicator light and 15 V 2A power supply included

An ideal solution for incorporating ceiling speakers with a Vaddio ConferenceSHOT AV videoconferencing PTZ camera and microphone bundle. Also perfect for connecting the Vaddio IntelliSHOT or ConferenceSHOT ePTZ cameras with a speaker bar like the Vaddio Easy Talk Soundbar. Use the Twin Mono AMP in combination with a variety of Vaddio AV Bridge products to easily incorporate professional quality speakers in collaboration spaces.

Plug and play compatibility with ConferenceSHOT AV or EasyIP Decoder (use without included power supply) and IntelliSHOT, ConferenceSHOT ePTZ, AV Bridge Mini, AV Bridge 2x1, AV Bridge MatrixMIX, AV Bridge MATRIX PRO, and OneLINK Bridge.

Designed to easily attach to the underside of a ConferenceSHOT AV camera wall mount for simplified cable routing to wall speakers.

This package includes:

• Twin Mono AMP
• 15 V, 2A power supply
• ConferenceSHOT AV-compatible 4 conductor power / audio cable, 8 in. (20 cm) in length
• 2-conductor 5 mm Phoenix style plugs, qty. 2, for use in making speaker cables for your installation

Professional A/V presentation and conferencing UHD (ultra high definition) camera with pristine image quality. Simultaneous 3 Gb/s HD-SDI, HDMI, HDBaseT, and IP (H.264) streaming. Recommended for large meeting rooms, lecture halls, and houses of worship.

RoboSHOT Elite Series cameras are professional A/V presentation cameras. Simultaneous HDBaseT and IP (H.264) streaming. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view. Includes OneLINK Bridge Express Extension System.Key Features:12x Optical Zoom1/2.5-type Exmor R CMOS sensor70.2° horizontal field of viewSimultaneous HDbaseT, HDMI and IP H.264 streamingRemote IP ManagementSimple, clutter-free camera extension with HDBaseT technologyPower, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)Bridges audio and video for easy soft-client conferencingSimultaneous HDMI, USB 3.0, and IP Streaming outputsConfigurable audio matrix with AECUp to 1080p/60 resolution available over uncompressed USBNew! Vaddio Deployment ToolSimplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! â€" remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.Download the Deployment Tool >Introducing the RoboSHOT Elite Series â€" Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.OneLINK Bridge Express connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Microsoft Teams, Google Meet, and Zoom.Along with the bridging capabilities, the system’s OneLINK Bridge Express for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.This Package Includes:RoboSHOT 12E HDBT camera (black or white)Thin Profile Wall Mount (black or white) with mounting hardware and installation manualVaddio IR Remote CommanderOneLINK Bridge Express Interface48V power supply with AC cord set(s)EZCamera RS-232 Control Adapter4 qty 3-position phoenix-style connectors6 ft. (1.8m) USB 3.0 cable, type A to B
