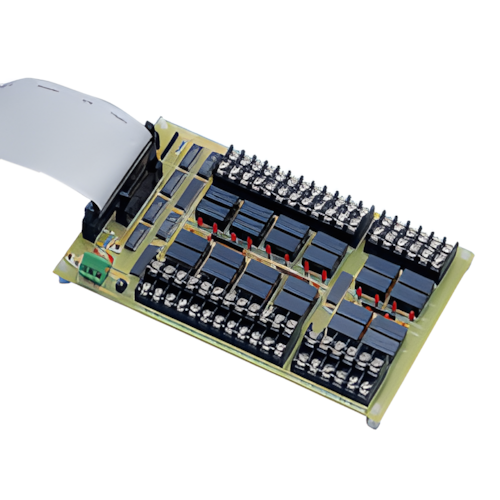

ADVANTECH PCLD-785B-AE 16/24-ch Relay Output Board, 16ch (CN1,20-pin conn.), 24ch (CN2, 50-pin conn.)

Mfg Part Number:  PCLD-785B-AE
Image may not reflect the actual item.
Price: $237.60
Quantity:
Status: Active
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:
The PCLD-785B carry 16/24 SPDT electromechanical relays with a 20-pin flat cable connector and an additional 50-pin Opto-22 connector (for PCLD-785B only) compatible with the digital outputs of most I/O Cards. The number of output channels available on the PCLD-785B depends on the connector you use. The I/O card’s 50-pin connector accesses all 24 channels, while its 20-pin connector has access to 16 channels. The PCLD-785B automatically selects the correct control logic for the connector in use.

Features
  • Compatible with PC-LabCard™ products with 20-pin digital output connector
  • Compatible with PC-LabCard™ products with 20-pin DI connector and 50-pin Opto-22 DO connectors
  • Relays: PCLD-785: 16 SPDT, PCLD-785B: 16 or 24 SPDT
  • Automatic selection of control logic: Negative logic for the Opto-22 connector Positive logic for th
  • On-board relay driver circuits
  • Automatic selection of control logic: Positive logic for the 20-pin flat cable cooector
  • Screw terminals for easy output wiring
  • On-board relay driver circuits
  • LED status indicators
  • Screw terminals for easy output wiring
  • Cable and mounting accessories
  • LED status indicators
  • Cable and mounting accessories
  • Relays: PCLD-785: 16 SPDT, PCLD-785B: 16 or 24 SPDT
