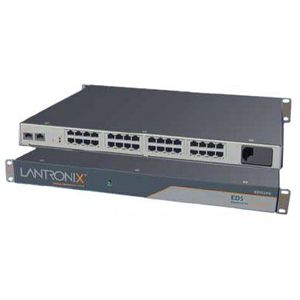

EDS03212N-02 Lantronix EDS32PR 32-Port Device Server

The EDS32PR is the first line of rack- mountable device server capable of delivering an data center-grade, programmable device computing and networking platform for integrating edge equipment into the enterprise network.

32-port configurations, the Evolution Device Servers (EDS) is ideal for remotely monitoring and managing serial-based equipment in diverse applications such as retail/POS, medical, security telecommunications, industrial and building automation.

General Information
Manufacturer	Lantronix, Inc
Manufacturer Part Number	EDS03212N-02
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	EDS
Product Model	EDS32PR
Product Name	EDS32PR 32-Port Device Server
Product Type	Device Server
Network & Communication
Ethernet Technology	Fast Ethernet
Interfaces/Ports
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	33
Physical Characteristics
Form Factor	Wall Mountable
Form Factor	Rack-mountable
Height	1.8"
Width	17.3"
Depth	12"
Weight (Approximate)	10.01 lb
Miscellaneous
Package Contents	EDS32PR 32-Port Device Server DeviceInstaller configuration software Com Port Redirector software and related utilities
Additional Information	Support Evolution OS Software
Warranty
Limited Warranty	2 Year

Mechanical
Dimensions: WxHxD (mm)	560 x 480 x 200
Mounting	Rack Mount
Enclosure	Metal
Interface
Serial interface	RS232
Serial interface number of ports	32
Serial Interface type of connector	RJ45
Network interface	1 Port Ethernet RJ45 Connector
Network interface number of ports	1
Network interface type of connector	RJ45
Power
Power Input Type	Single AC / Plug
Operating Supply Voltage	100 to 240 VAC
Power Consumption	20W
Reliability
Operating Temperature	0 to 50C
Isolation Protection	-
Surge Protection	-
Standards and Certifications	-

The EDS32PR is the first rackmountable device server capable of delivering a data center-grade, programmable device computing and networking platform for integrating "edge" equipment into the enterprise network. EDS32PR device server is ideal for remotely monitoring and managing serial-based equipment in diverse applications such as retail/POS, medical, security telecommunications, industrial and building automation. Featuring Evolution OS, the powerful real-time networking operating system, it delivers an unprecedented level of intelligence and security to networked equipment. With this innovative, versatile product, multiple electronic devices can become secure members of the corporate network that can be accessed and managed from virtually anywhere, at any time.

Device Type	Device server
Height (Rack Units)	1U
Width	17.2 in
Depth	12 in
Height	1.8 in
Processor / Memory / Storage
Processors Installed	1 x Intel IXP420 266 MHz
Max Supported Qty	1
RAM Installed ( Max )	32 MB
Flash Memory Installed (Max)	8 MB flash
Networking
Form Factor	External
Ports Qty	32
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, RS-232
Network / Transport Protocol	TCP/IP, UDP/IP, ICMP/IP, ARP, SMTP, BOOTP, DHCP
Remote Management Protocol	SNMP 2, Telnet, HTTP
Status Indicators	Link activity, port transmission speed, power
Features	128-bit encryption, auto-sensing per device, DHCP support, BOOTP support, ARP support, 1024-bit encryption, manageable, 256-bit encryption, firmware upgradable, wall mountable
Encryption Algorithm	Triple DES, RC4, MD5, ARCFOUR, AES, SHA-1, SSL 3.0, 128-bit AES, 256-bit AES
Authentication Method	Secure Shell v.2 (SSH2)
Compliant Standards	IEEE 802.3
Expansion / Connectivity
Interfaces	32 x serial - RS-232 - RJ-45 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
Miscellaneous
Mounting Kit	Included
Compliant Standards	CE, UL, TUV GS, VCCI, C-Tick, cUL, EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, FCC Part 15, ICES-003 Class A, RoHS
Power
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Software / System Requirements
OS Provided	Evolution OS
Software Included	Drivers & Utilities, Lantronix Com Port Redirector, Lantronix DeviceInstaller
OS Required	Microsoft Windows 98/ME/NT/2000/XP
Manufacturer Warranty
Service & Support	2 years warranty
Service & Support Details	Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	5 - 95%
