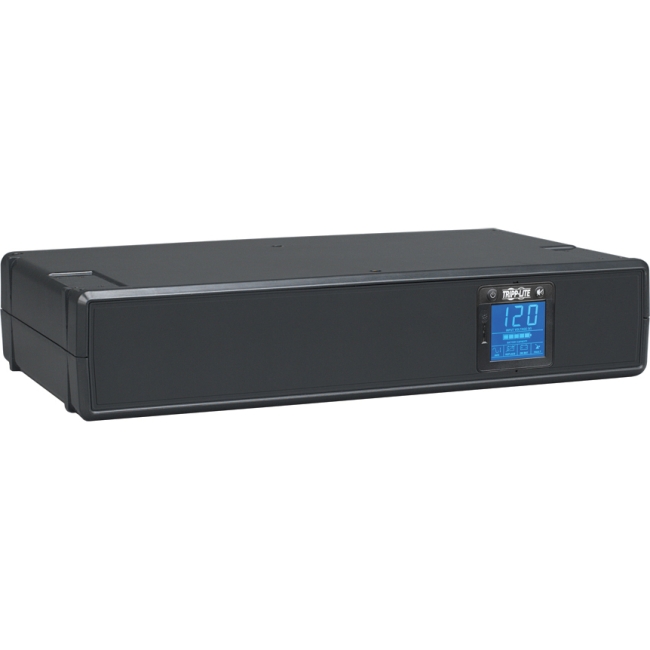

SMART1200LCD Tripp Lite SmartPro 1200 VA Rack-mountable Tower Digital UPS
Mfg Part Number: SMART1200LCD , Item #: 377839
, PO and Wire.
The SMART1200LCD SmartPro LCD 120V, 1200VA/700W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
Eight NEMA 5-15R outlets protect against surges, as well as provide up to 14.3 minutes of UPS battery support at half load (350W) and 4.0 minutes of support at full load (700W). Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using any battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 870-joule surge suppression rating protects your equipment from harmful power surges.
NEMA 5-15P plug with 6-ft. (1.83 m) cord connects to any NEMA 5-15R socket. Large rotatable LCD screen shows real-time input voltage, overload, AVR and battery statuses at a glance. Alarm sounds to indicate power loss or low battery. With Tripp Lite's free PowerAlert software (available via free web download), the SMART1200LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure.
Reliable Battery Backup
- Provides 1200VA/700W high-performance power protection for desktop computers, audio/video components, media centers and other electronics
- Supports 50% load (350W) up to 12 minutes and full load (700W) up to 4 minutes
- Audible alarm indicates loss of utility power or low battery
- Battery access door enables hot-swappable, user-replaceable internal batteries
Optimized Outlets
- 8 NEMA 5-15R outlets provide battery backup and protect against surges or spikes that can harm equipment or data
Automatic Voltage Regulation (AVR)
- Corrects undervoltages as low as 75V and overvoltages as high as 147V without drawing battery backup power
Rotatable LCD Status Screen
- Large LCD screen shows real-time input voltage, overload, AVR and battery statuses
- Rotates for easy viewing in both horizontal and vertical installations
- Dimmer option controls brightness level
AC Line, Tel/DSL and Ethernet Surge Suppression
- Surge suppression rating of 870 joules protects connected equipment and data from harmful power surges
- Built-in RJ-45 jacks protect single-line tel/DSL or network Ethernet connection
EMI/RFI Line Noise Filtering
- Removes electromagnetic and radio frequency interference that can disrupt or damage your equipment's performance
USB and DB9 Communication Ports and Free PowerAlert Software
- HID-compliant USB port integrates with built-in power management and auto-shutdown of Windows and Mac OS X
- USB and DB9 serial ports work with Tripp Lite PowerAlert software (available for free download at www.tripplite.com/poweralert to enable safe, unattended system shutdown and file saves during prolonged power failure
| General Information | |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMART1200LCD |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartPro |
| Product Model | SMART1200LCD |
| Product Name | SmartPro 1200 VA Rack-mountable Tower Digital UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Cord Length | 6 ft |
| Transfer Time | 4 ms |
| Power Description | |
| Load Capacity (VA) | 1200 VA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 870 J |
| Circuit Breaker | Yes |
| Controls/Indicators | |
| Status Indicators | Front panel LCD screen with blue backlight offers:
|
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 14.30 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Thermal Dissipation | 71.42 W |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.3" |
| Width | 3.5" |
| Depth | 10.5" |
| Rack Height | 2U |
| Form Factor | Tower |
| Weight (Approximate) | 25.13 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Power Rating | - |
| Output Voltage Rating | - |
| Number of Outputs | - |
| Runtime-Full Load | - |
| Runtime-Half Load | - |
MODEL- SMART1200LCD VENDOR- TRIPPLITE
FEATURES- 1200VA Smart Pro LCD UPS
Tripp Lite's SMART1200LCD Line-Interactive Digital UPS System offers
voltage regulation, surge suppression and long-lasting battery
support for personal computers, network workstations, home
entertainment systems and media centers. Internal UPS circuits
support entry-level PCs or individual VCR/DVR components during
power failures. Prevents data loss, viewing interruptions, lost
recordings and loss of component programming. Automatic Voltage
Regulation (AVR) circuits regulate brownouts and overvoltages from
75V to 147V back to usable levels without using battery power.
Offers complete power protection with support for upright tower,
flat shelfmount or 2U rackmount installation in an attractive all-
black cabinet design. Includes 8 battery-supported outlets. Built-
in USB and DB9 serial ports enables optional unattended system
shutdown without data loss in case of extended power failure;
cabling included. PowerAlert Software available via free download
from www.tripplite.com. HID-compliant USB interface enables full
integration with built-in power management and auto shutdown
features of Windows, Mac OS X and Linux. Built-in single-line RJ-45
jacks offer protection for equipment with single-line tel/DSL or
network Ethernet connection. Built-in audible alarm and large LCD
front panel voltage display indicates line power status, battery
power status, battery low/replace status and voltage boost
operation. 1200VA/700W power-handling capacity supports entry-level
PCs, home entertainment systems, network workstations and
audio/video components. Offers 4 min. battery runtime with a full
load of 1200VA/700W and 12 min.
* LCD display indicates input voltage, battery capacity and a variety of
operating conditions.
* 1200VA line-interactive 2U rackmount shelf/tower UPS system
* 8 UPS-supported AC outlets, dataline surge suppression for tel/DSL or
network Ethernet line.
* DB9 serial and USB ports with HID protocol support and complete cabling
* Corrects brownouts as low as 75V and overvoltages to 147V back to 120V
nominal levels.
