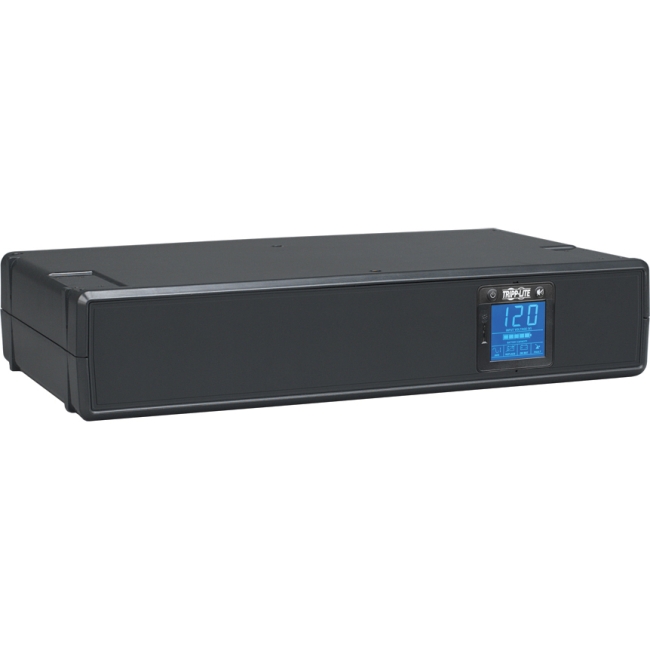

SMART1500LCD Tripp Lite SmartPro 1500 VA Rackmount/Tower Digital UPS

This SmartPro® line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The SMART1500LCD is ideal protection for small business networks, VoIP systems, point-of-sale applications, desktop workstations, home offices and home theater systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting.

NEMA 5-15R Outlets Protect Your Connected Components

Eight 5-15R outlets provide connected equipment with PWM sine wave AC output. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1500LCD can correct brownouts as low as 75V and overvoltages as high as 147V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

ENERGY STAR-Certified to Help You Save Money and Protect the Environment

By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring

The large LCD indicates a variety of UPS operational conditions, including voltage, runtime, load, battery and operating mode. The control panel rotates to accommodate both rack-mount and tower configurations. An audible alarm indicates loss of utility power or low battery.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and HID-compliant USB ports connect to a computer running free downloadable PowerAlert® software to enable safe unattended system shutdown in case of a prolonged power failure. Cables are included.
Versatile Installation Options

You can mount the SMART1500LCD in just 2U of space in an EIA-standard 19-inch rack using the included hardware. You can also adapt it for tower installation using the included brackets. The six-foot power cord with NEMA 5-15P plug connects to a compatible AC outlet.

More from the Manufacturer

• Mfr Part Number: SMART1500LCD
• Voltage compatibility: 120 VAC
• Frequency compatibility: 60 Hz
• Output:
• Output volt amp capacity: 1500 VA
• Output watt capacity: 900 Watts
• Output nominal voltage: 120 VAC
• Output voltage regulation: Battery Mode - PWM sine wave 115V +/-5%
• Output frequency regulation: Line Mode - Passes line frequency of 60Hz +/-10%; Battery Mode - Inverter output regulated to 60Hz +/-0.5Hz
• Outlet quantity / type: 8x NEMA 5-15R
• Overload protection: 10A input circuit breaker
• Input:
• Maximum input amps: 8.5 A
• Input connection type: NEMA 5-15P
• Input cord length: 6 ft. / 1.8 m
• Recommended electrical service: 120V 15A
• Battery:
• Full load runtime: 3.5 min. (900W)
• Half load runtime: 13 min. (450W)
• Typical battery lifespan: 4~6 years (depending on usage)
• Battery recharge rate: 2~8 hours to 90%
• Voltage Regulation:
• Voltage regulation description: Automatic Voltage Regulation (AVR) circuits maintain clean, regulated computer-grade 120V nominal output, without using battery power, during brownouts to 75V and overvoltages to 147V
• Overvoltage correction: Input voltages between 128VAC and 147VAC are reduced by 12%
• Brownout correction: Input voltages between 93VAC and 107VAC are boosted by 14%
• Severe brownout correction: Input voltages between 75VAC and 92VAC are boosted by 30%
• Surge / Noise Suppression:
• AC surge suppression: 480 joules
• AC suppression response time: Instantaneous
• Dataline suppression: Tel/DSL or Ethernet
• EMI / RFI AC noise suppression: Yes
• Communications:
• Network monitoring port: DB9 and USB
• WatchDog compatibility: Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment; ideal for unattended kiosk applications
• Line / Battery Transfer:
• Transfer time from line power to battery mode: 2~4 milliseconds
• Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 75V or less, switches back to AC mode as line voltage increases to 79V or higher
• High voltage transfer to battery power: Switches to battery mode as line voltage increases to 147V or higher, switches back to AC mode as line voltage decreases to 143V or lower
• Certifications: Tested to UL1778 (USA), CSA (Canada), NOM (Mexico), Class B (EMI), FCC part 68 and Industry Canada (US & Canada)
• Special Features:
• Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
• Appearance: Attractive black color scheme
• Physical:
• Material of construction: ABS
• Form factors supported: Rack/Tower
• Cooling method: Convection
• Dimensions (WxDxH): 3.5 x 10.5 x 17.25 inch / 8.9 x 26.7 x 43.8 cm
• Weight (lbs): 29 lbs /13.2 kg
