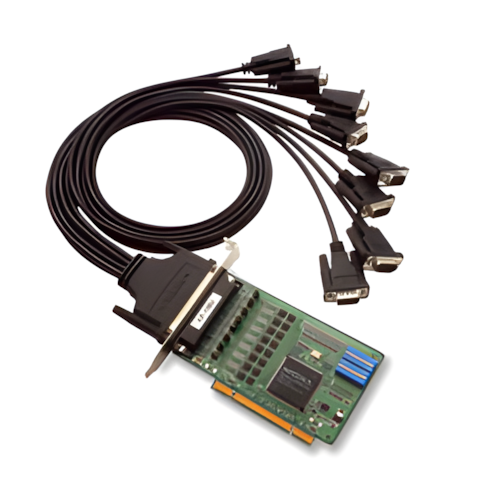

Moxa CP-118U 8-Port async board, PCI bus, RS232/422/485 Three-in-One (requires interface option)
MOXA Major LinesMfg Part Number: CP-118U , Item #: 329283
In Stock: 54
, PO and Wire.
Related Model(s):
8-port RS-232/422/485 Universal PCI serial boards, Wide Temp: -40 to 85°C, DB62F Serial Conn
8-port RS-422/485 Univer PCI serial boards, DB62F Serial Conn, Wide Temp -40 to 85°C
8-Port async board,------(board only; no cable) --- Universal PCI bus,921.6kbps
| Introduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CP-118U is a Smart Universal PCI
Multiport Serial Board designed for
POS and ATM applications, and for use by industrial automation system
manufacturers and system integrators. CP-118U is compatible with all
popular operating systems, and each of its 8 RS-232/422/485 serial
ports supports data rates of up to 921.6 Kbps, and provides full modem
control signals, ensuring compatibility with a wide range of serial
peripherals. In addition, CP-118U works with both 3.3V and 5V PCI
buses, allowing the board to be installed in virtually any available PC
server. Top Performance with 128-byte FIFO and On-chip H/W, S/W Flow Control Based on over 17 years of experience, Moxa has developed the Turbo Serial Engine™ chip for high performance serial data transmission. Thanks to Turbo Serial Engine™, CP-118U Series is equipped with a 128-byte FIFO and on-chip hardware, software flow control and burst data mode. These excellent features make CP-118U the top performer among all smart multiport serial boards in the world. Support for Major Windows and Linux/Unix OS drivers Moxa continues to support today's mainstream operating systems, and CP-118U is no exception. Reliable Windows COM and Linux/Unix TTY drivers are available for use with CP-118U, and other operating systems, such as Windows XP embedded are also supported for embedded integration applications. PComm Lite Utility for Easy management and Software Development CP-118U's software package includes the PComm Lite utility,
which is
used to diagnose and monitor the status of installed Moxa serial
boards. In addition, PComm Library, with its basic serial I/O and file
transfer library, is supplied free for easy software development
Dimensions
Connection Options  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Features |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Specifications |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ordering Information |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optional Accesories |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Specification
| Power Requirements | |
| Power Consumption | CP-118U: 240 mA @ +5 V (RS-232), 300 mA @ +5 V (RS-422) CP-138U: 135 mA @ +5V (RS-422) |
| Serial Communication Parameters | |
| Flow Control | RTS/CTS, XON/XOFF |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| IRQ | Assigned by BIOS |
| I/O Address | Assigned by BIOS |
| Hardware | |
| Connector | DB62 female |
| Bus | 32-bit Universal PCI |
| Comm. Controller | MU860 (16C550C compatible) |
| Performance | |
| Baudrate | 50 bps to 921.6 Kbps |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| MTBF (mean time between failures) | |
| Time | 1,147,210 hrs |
| Database | Telcordia (Bellcore), GB |
| Physical Characteristics | |
| Dimensions | 82 x 135 mm (3.22 x 5.31 in) |
| Serial Interface | |
| Serial Standards | CP-118U: RS-232/422/485 CP-138U: RS-422/485 |
| Number of Ports | 8 |
| Max. No. of Boards per PC | 4 |
| Serial Line Protection | |
| ESD Protection | 15 KV on the board |
| Serial Signals | |
| RS-485-4w | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-2w | Data+(B), Data-(A), GND |
| RS-422 | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Standards and Certifications | |
| EMI | EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B |
| EMS | EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS) |
| EMC | CE, FCC |
| Green Product | RoHS, CRoHS, WEEE |
| Driver Support | |
| Operating Systems | Windows 9X/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Windows CE 5.0/6.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 x86/x64, FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7, Solaris 10 x86/x64 |
| Note | Please refer to Moxa's website for the latest driver support information. |
| Warranty | |
| Warranty Period | 5 years |
| Details | See http://www.moxa.com/support/warranty.htm |
