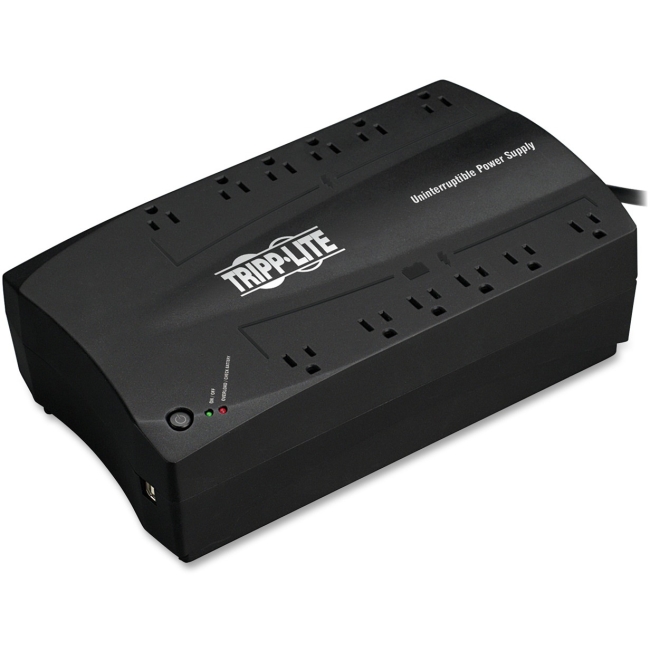

INTERNET750U Tripp Lite 750VA 6UPS/Surge and 6 Surge UPS System

UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Ultra-compact, wall-mountable UPS includes 12 widely spaced, output receptacles to accommodate large transformer plugs. 6 outlets provide full battery support and surge suppression for computers, monitors and other vital system components. 6 additional, surge suppression-only outlets are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA/450 watt power handling ability supports entry-level PCs for up to 45 minutes during power failures.

More from the Manufacturer

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	INTERNET750U
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	INTERNET750U
Product Name	750VA 6UPS/Surge and 6 Surge UPS System
Packaged Quantity	1 Each
Product Type	Standby UPS
Technical Information
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	12 x NEMA 5-15R
Number of Battery & Surge Outlets	6
Number of Surge-only Outlets	6
Dataline Protection	RJ-11
Cord Length	5 ft
Transfer Time	4 ms
Application/Usage	Media Player
Application/Usage	Digital Signage
Application/Usage	Home Theater
Application/Usage	Blu-ray Player
Application/Usage	Server
Application/Usage	Commercial
Application/Usage	Gaming Console
Application/Usage	Router
Application/Usage	TV
Application/Usage	Printer
Application/Usage	Media Center
Application/Usage	DVR
Application/Usage	Audio System
Application/Usage	Desktop Computer
Application/Usage	Home/Office
Power Description
Load Capacity (VA)	750 VA
Load Capacity (Watt)	450 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Waveform Type	Pulse-width Modulated Sine Wave
Surge Energy Rating	380 J
Management
Alarm	Self-test Operation
Alarm	On Battery
Controls/Indicators
Status Indicators	2 LEDs indicate on/off and overload/check battery
Interfaces/Ports
USB	Yes
Battery Information
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	2.50 Minute
Backup/Run Time (Half Load)	11 Minute
Battery Life	6 Year
Hot Swappable	Yes
Typical Battery Recharge Time	4 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Physical Characteristics
Product Color	Black
Height	4"
Width	12"
Depth	7"
Form Factor	Ultra-compact Desk-mount
Weight (Approximate)	15.50 lb
Miscellaneous
Package Contents	Internet Office 750VA UPS USB cable and phone cord Instruction manual with warranty information
Software Included	PowerAlert Software
Country of Origin	Vietnam
Warranty
Limited Warranty	3 Year
Additional Warranty Information	2-year warranty; $100,000 connected equipment insurance (USA & Canada only).

General Information
Power Rating	750 VA
Output Voltage Rating	120 V
Number of Outputs	8
Runtime-Full Load	5 min
Runtime-Half Load	17 min

Tripp Lite's INTERNET750U standby UPS offers complete protection for PCs, workstations and other sensitive electronics in an attractive, ultra-compact and mountable housing. Prevents data loss and system downtime by providing battery supported AC output during brownouts and blackout conditions. 8 widely-spaced output receptacles accommodate large transformer plugs without blocking outlets. 4 outlets provide full battery support and surge suppression to protect computers, monitors and other vital system components from loss of power. 4 additional surge suppression-only outlets are ideal for printers and other accessories not requiring battery support. Single line telephone suppression jacks with line splitter protects up to two directly-connected modems, fax machines, cordless phones or other peripherals sharing a standard dialup or DSL phone line connection. USB port with PowerAlert Monitoring Software and cabling enables a safe, unattended system shutdown. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA / 450 watt power handling ability supports entry-level PCs for up to 35 minutes during power failures. 2 year warranty. $100,000 connected equipment insurance (USA & Canada Only).

INTERNET750U standby UPS offers complete protection from blackouts, brownouts and surges on AC and tel/DSL dataline connections

8 widely-spaced outlets accommodate large transformer plugs without blocking outlets

4 battery-supported outlets protect computers and vital system peripherals. 4 surge suppression-only outlets protect system accessories that do not require battery support

Provides battery derived AC output during blackouts and brownouts

750VA / 450 watt power handling ability supports a variety of PCs, workstations and other sensitive electronics

Supports entry-level PC systems up to 35 minutes during blackout conditions

Single line tel/DSL line surge suppression with line splitter protects two directly-connected modems, fax machines or cordless phones sharing a single phone line connection

USB port, FREE PowerAlert Software and cabling provide monitoring of site power conditions

Compatible with Tripp Lite's WatchDog System Service Monitoring/Rebooting Software (part# WATCHDOGSW)

Hot swappable battery replacement supported via battery access door

Space saving, ultra-compact housing

Keyhole mounting flanges enable secure wallmount installation

$100,000 Ultimate Lifetime Insurance protects connected equipment from surge damage (U.S. and Canada only)

2 year manufacturer's product warranty
