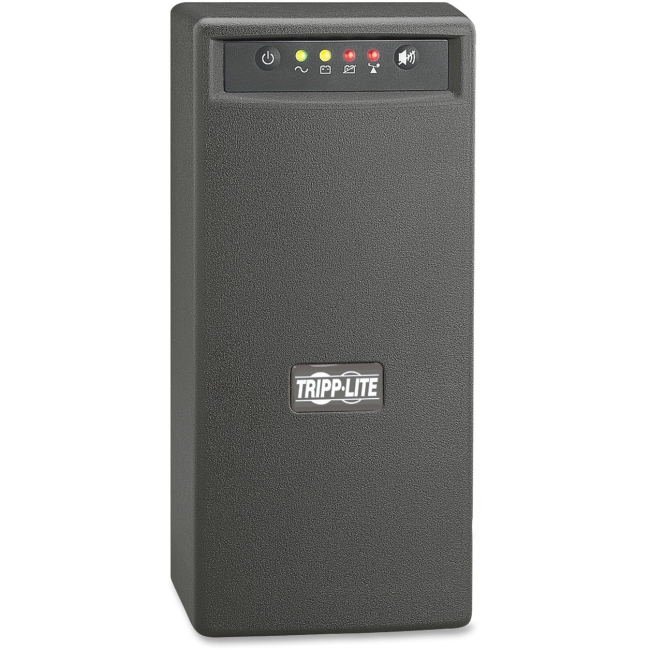

Line interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 83 volts back to usable levels without using battery power. Includes six battery-supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line RJ phone suppression jacks protect modem, fax machine or cordless phone with a standard dial-up/DSL phone connection. Offers 7-minute battery runtime with a full load of 1000VA/500 watts and 18 minutes with a half load of 500VA/250 watts.
General Information | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | OMNIVS1000 |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Line | Omni |
Product Series | VS |
Product Name | 8-Outlet Line Interactive UPS System |
Packaged Quantity | 1 Each |
Product Type | Line-interactive UPS |
Technical Information | |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 6 x NEMA 5-15R |
Receptacle Detail | 2 x NEMA 5-15R |
Dataline Protection | RJ-45 |
Cord Length | 6 ft |
Transfer Time | 4 ms |
Power Description | |
Load Capacity (VA) | 1000 VA |
Load Capacity (Watt) | 500 W |
Input Voltage | 110 V AC |
Output Voltage | 120 V AC |
Waveform Type | Pulse-width Modulated Sine Wave |
Surge Energy Rating | 480 J |
Management | |
Alarm | On Battery |
Controls/Indicators | |
Status Indicators | 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation |
Interfaces/Ports | |
USB | Yes |
Battery Information | |
Battery Chemistry | Lead Acid |
Backup/Run Time (Full Load) | 3.50 Minute |
Backup/Run Time (Half Load) | 14 Minute |
Battery Life | 6 Year |
Typical Battery Recharge Time | 4 Hour |
Environmental Conditions | |
Maximum Operating Temperature | 122°F (50°C) |
Physical Characteristics | |
Product Color | Black |
Height | 10.8" |
Width | 5.3" |
Depth | 7.3" |
Form Factor | Tower |
Weight (Approximate) | 21 lb |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Warranty | |
Limited Warranty | 3 Year |
Additional Warranty Information | 2 year warranty. $200,000 connected equipment insurance (USA & Canada Only). |
General Information | |
Power Rating | 1000 VA |
Output Voltage Rating | 120 V |
Number of Outputs | 8 |
Runtime-Full Load | 7 min |
Runtime-Half Load | 18 min |
MODEL- OMNIVS1000 VENDOR- TRIPPLITE FEATURES- Omni VS UPS System- Black tower 1000VA Line interactive UPS for personal PCs and workstations. Tripp Lite's OMNIVS1000 line interactive UPS system offers voltage regulation, surge suppression and long lasting battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 83 volts back to usable levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes 6 battery supported outlets for computer, monitor and one vital system peripheral, plus 2 additional surge suppression-only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. PowerAlert software available via free download from www.tripplite.com. Built-in single line RJ phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 1000VA/500 watt power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 7 minutes battery runtime with a full load of 1000VA/500 watts and 18 minutes with a half load of 500VA/250 watts. Supports battery replacement via built-in access panel. DSL connections. Find the TrippLite UPS appropriate for your needs. Try the TrippLite UPS Sizing Guide Today. Includes OMNIVS1000 Line Interactive UPS, USB and telephone cable, User manual with warranty information. * OMNIVS1000 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support. * Supports entry level PCs up to 60 minutes during blackouts to enable shutdown without data loss. * Regulates brownouts as low as 83 volts back to usable levels without using battery power. * 6 UPS battery supported outlets, plus 2 additional surge suppression- only outlets. * USB port and cable enables unattended shutdown in the case of extended power failure. * PowerAlert software available via free download from www.tripplite.com. * Single line phone suppression protects standard dialup/DSL phone connection. * Audible alarm and 4 front panel LEDs offer complete UPS and line power status information. * 1000VA/500 watt power handling ability supports a variety of sensitive electronic equipment. * 7 minutes full load runtime (1000VA/500 watts), 18 minutes half load runtime (500VA/250 watts). * Supports battery replacement via built-in access panel. * $200,000 connected equipment insurance (USA & Canada only). -- SPECIFICATIONs ----------------------------------- OUTPUT - Output volt amp capacity (VA): 1000 Output watt capacity (watts) : 500 Output nominal voltage : 120V AC Output voltage regulation : BATTERY MODE: PWM sine wave 115V +/-5% Output frequency regulation : LINE MODE: Passes line frequency of 60Hz +/-10% BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz Outlet quantity/type : (8) NEMA 5-15R output receptacles (6 with UPS and surge suppression/2 with surge suppression only) INPUT - Maximum input amps/watts : 12A/1440 watts Input connection type : NEMA 5-15P Input cord length : 6 ft., 14 gauge Recommended electrical service: 15A 120V BATTERY- Full load runtime : 7 minutes (1000VA/500 watts) Half load runtime : 18 minutes (500VA/250 watts) DC system voltage : 12 V DC Typical battery lifespan : 3-6 years, depending on usage Battery recharge rate : 2-4 hours to 90% Expandable battery runtime: Includes two 6V 12AH sealed lead Access : Door allows user replacement of batteries. VOLTAGE REGULATION- Voltage regulation : Line interactive voltage regulation corrects brownouts as low as 83V back to usable values. Direct pass through: Voltages of 106V and greater are passed through to connected equipment unchanged. Brownout correction: Input voltages between 83 and 105 are boosted by 14% LEDS ALARMS & SWITCHES- Front panel LEDs: 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation. Alarms : Audible alarm with 15 second delay sounds to indicate loss of utility power. Alarm can be silenced by pressing front panel alarm cancel button. Once silenced, alarm will re-sound when approximately 2 minutes runtime remain. Switches : Includes 2 front panel switches - one main on/off power switch and one dual function "alarm cancel"/ "self test" button. SURGE/NOISE SUPPRESSION- AC surge suppression : Conforms to IEEE 587/ANSI C62.41 specs. AC suppression response time: Instantaneous Dataline suppression : Single line TEL/DSL surge suppression with RJ-style phone connectors (center 2 wires protected, 260V clamping), includes phone cable. EMI/RFI AC noise suppression: Yes COMMUNICATIONS - Network monitoring port: Single built-in USB port supports on battery, low battery and power restored messaging. Interface supports timed inverter shutoff after unattended shutdown. Compatible with Tripp Lite's PowerAlert and Watchdog service software Software and cabling incl: USB cabling included, PowerAlert software available for free download at www.tripplite.com WatchDog compatibility : Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/ OS or hard power off/on reboot of connected equipment -- ideal for unattended kiosk applications. LINE/BATTERY TRANSFER - Transfer time from line power to battery mode: 2-4 milliseconds Low voltage transfer to battery power : Switches to battery power as line voltage decreases to 83 volts or less. Resets to line power mode as line voltage increases to 87V or higher. High voltage transfer to battery power : Switches to battery power as line voltage increases to 147 volts or higher. Resets to line power mode as line voltage decreases to 143V or less. COLD START - Inverter can be "cold started" to enable temporary AC output during a power failure. MATERIAL - Made of PVC FORM FACTOR- Tower, wall mountable with optional UPSWM accessory. COOLING - Convection APPROVALS - UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68/Industry Canada (telecommunications) SIZE - 5.25"w x 10.75"h x 7.25"d WT.- 21.2 lbs. www.tripplite.com
