BLACK BOX

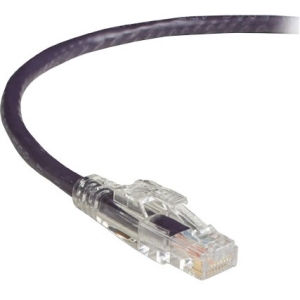

C6PC70-VT-20 Black Box GigaTrue 3 CAT6 550-MHz Lockable Patch Cable (UTP) - Violet, 20-ft. (6.0-m)

Mfg Part Number:  C6PC70-VT-20
Image may not reflect the actual item.
Price: $18.52 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Mar 28, 2024
No Sales Tax except these states
, PO and Wire.

Premium Performance

Black Box GigaTrue 3 Premium CAT6 Patch Cables exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video, and PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 specification, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.

These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. The rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison to standard connectors.

Locking Options Available

These cables allow you to lock down critical network ports when required - without buying new patch cords. Secure your network ports by inserting a locking pin (sold separately) into the built-in locking tab on the patented snagless boot. To unplug the cable, release it with the removal key (sold separately).

Locked: Red Pin Prevent unauthorized access to mission-critical and publicly accessible ports in government offices, lobbies, retail establishments, and more. To lock a port, insert the red locking pin into the patented LockPORT boot on the cable. Unlock the port with the LockPORT Locking Pin Removal Tool.

Secured: Green Pin Prevent accidental disconnects in the office, manufacturing and industrial applications and more. To secure a port, insert the green locking pin into the cable's LockPORT boot. To release the pin, squeeze its butterfly tabs and pull - no removal tool required.

Main Specification
General Information
Manufacturer Black Box Corporation
Manufacturer Part Number C6PC70-VT-20
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Line GigaTrue 3
Product Name GigaTrue 3 Cat.6 UTP Patch Network Cable
Product Type Network Cable
Technical Information
Cable Type Category 6
Cable Characteristic Patch Cable
Cable Length 20 ft
Connector Type on First End RJ-45 Network - Male
Connector on First End Details 1 x RJ-45 Network - Male
Connector Type on Second End RJ-45 Network - Male
Connector on Second End Details 1 x RJ-45 Network - Male
Contact Plating Gold
Shielding No
Jacket Type CM
Device Supported Patch Panel
Device Supported Wallplate
Device Supported Network Device
American Wire Gauge 24 AWG
Data Transfer Rate 1 Gbit/s
Boot Type Snagless
Features Near End Cross Talk (NEXT)
Features Damage Resistant
Features Stranded
Features Booted
Features Rugged
Features Lockable
Features PoE
Physical Characteristics
Product Color Purple
Jacket Material Polyvinyl Chloride (PVC)
Miscellaneous
Environmentally Friendly Yes
Country of Origin China
Warranty
Limited Warranty Lifetime
