TRIPP LITE

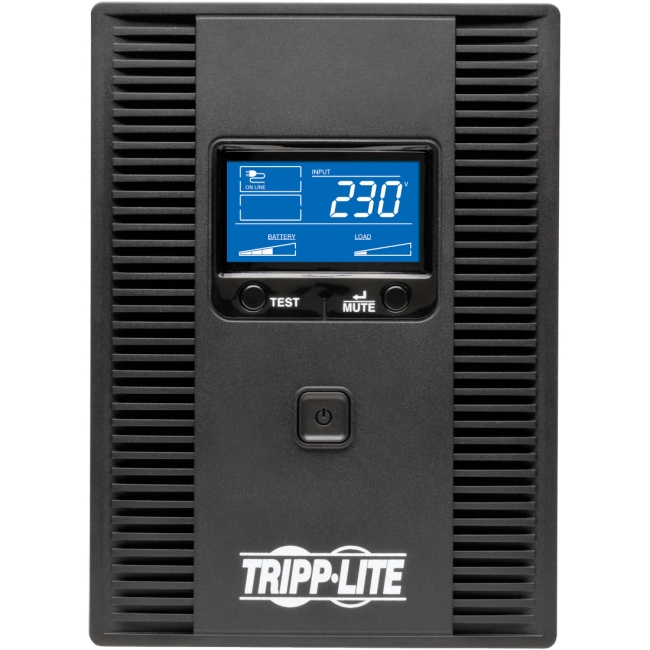

SMX1500LCDT Tripp Lite Smart LCD 1500VA Tower Line-Interactive 230V UPS with LCD Display and USB Port
Mfg Part Number: SMX1500LCDT , Item #: 1634078
Special Note: Sep 12, 2023
this is 230v international version; please check the compatibility. For 120VAC, check out part#SU1500XLCD.
, PO and Wire.
The SMX1500LCDT SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, media centers and home entertainment systems, the SMX1500LCDT switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCDT has an internal battery that provides 10 minutes of support at half load. It can also power an entry-level PC up to 90 minutes. Two of the eight outlets provide surge protection only for printers and other non-essential devices A front-panel LCD screen lets you configure settings and monitor operating data, such as voltage, battery and load statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 170V to 280V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 455-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's free downloadable PowerAlert software, SMX1500LCDT enables safe unattended system shutdown and file saves in case of a prolonged power failure.
| General Information | |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMX1500LCDT |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | SMX1500LCDT |
| Product Name | Smart LCD 1500VA Tower Line-Interactive 230V UPS with LCD Display and USB Port |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Dataline Protection | RJ-45 |
| Dataline Protection | RJ-11 |
| Cord Length | 6 ft |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 230 V DC |
| Input Current | 9 A |
| Output Voltage | 230 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 455 J |
| Circuit Breaker | Yes |
| Management | |
| Alarm | Power Failure |
| Alarm | Low Battery |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Physical Characteristics | |
| Height | 8" |
| Width | 5.8" |
| Depth | 15.5" |
| Form Factor | Tower |
| Weight (Approximate) | 24.69 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
