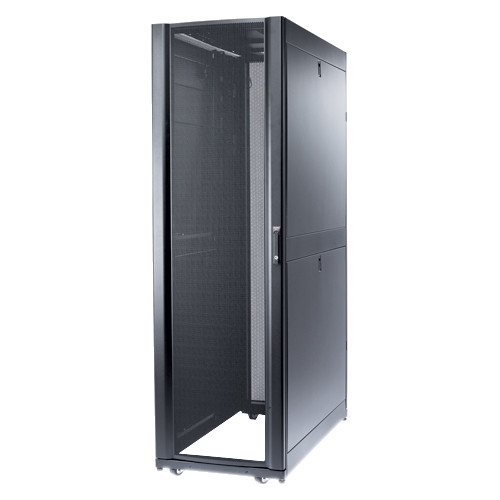

APC Netshelter SX, Server Rack Enclosure, 42U, Black, 1991H x 600W x 1200D mm
Deep Universal IT Enclosure for low to medium density server and networking applications that either require additional equipment clearance space or more open space for ease of access in the rear of the enclosure. Compact width to optimize data center space. 42U height to easily roll through doorways.
Includes: Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting hardware, Pre-installed casters, Side panels
NetShelter SX Enclosures Features & Benefits | Convenience | Cable access openings with pre-installed brushes
Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Roof includes openings with brush strips pre-installed in locations biased towards the front of the enclosure to allow for data cable passthrough and provisions for air containment.
Eyebolt support integrated into enclosure frame
Integrated eyebolt holes at the top of the enclosure frame allow the enclosure to be lifted for movement and enclosure placement using eyebolt lifting mechanisms. Refer to enclosure user documentation for detailed specifications on eyebolt requirements and enclosure weight limits.
Equipment mounting rails integrate with patch cabling systems
Equipment mounting rails include zero U mounting holes beside the EIA 19" mounting space that allow the installation of Data Distribution Cable (DDC) patch systems without taking up any critical equipment U-space. AV and Networking enclosure designs do not include hole locations for integration of DDC cabling. Other 1U, 2U, and rear enclosure zero U options are available for use with these enclosures.
Enclosure adjustment tools and hardware provided
All enclosures are provided standard with hardware bag that includes hardware for mounting IT equipment and tools for simple enclosure adjustment.
Easily removable cable access roof
Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.
Simple Selection
No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. Schneider Electric has made it easy by handling the details and providing complete enclosures with single part numbers.
Quick release doors
Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AR3300 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter SX |
| Product Name | Rack NetShelter SX 42U 600mm Wide x 1200mm Deep Enclosure with Sides Black |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | Server |
| Features | Removable Side Panel |
| Features | Lockable Door |
| Features | Cable Management |
| Features | Perforated Door |
| Features | Adjustable Leveling Feet |
| Features | Adjustable Mounting Rails |
| Physical Characteristics | |
| Form Factor | Floor Standing |
| Color Family | Black |
| Product Color | Black |
| Dynamic/Rolling Weight Capacity | 2254.73 lb |
| Static/Stationary Weight Capacity | 3006.31 lb |
| Height | 78.4" |
| Width | 23.6" |
| Depth | 47.2" |
| Rack Height | 42U |
| Rack Width | 19" |
| Weight (Approximate) | 295.62 lb |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 year repair or replace |
