TP LINK TP-Link Network TL-FC111A-20 10 100Mbps WDM Media Converter Retail
Mfg Part Number: TL-FC111A-20 , Item #: 4589102
, PO and Wire.
What This Product Does

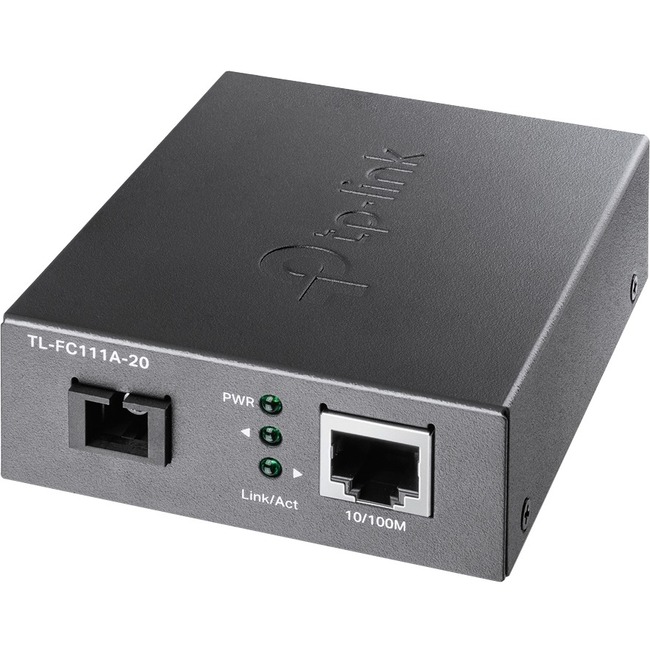

TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-FC111A-20 |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | TP-Link |
| Product Model | TL-FC111A-20 |
| Product Name | 10/100 Mbps WDM Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Wavelength | 1550 nm |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 12.43 Mile |
| Fiber Optic Cable Standard | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX |
| Network Technology | 100Base-TX |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Standalone |
| Form Factor | Rack-mountable |
| Height | 1.1" |
| Width | 3.7" |
| Depth | 2.9" |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
