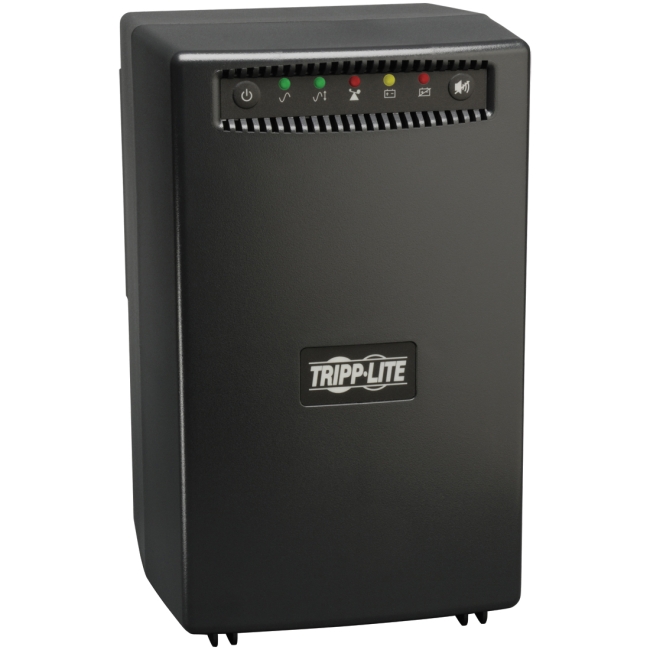

OMNIVS1500 Tripp Lite Omni VS 1500VA Tower UPS

Tripp Lite's OMNIVS1500 line interactive UPS system offers voltage regulation, surge suppression and battery support for sensitive electronics. Internal UPS batteries support entry level PC systems for up to 75 minutes during power failures. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 75 and overvoltages up to 147 volts back to usable 120V levels without using battery power. Includes 5 battery supported outlets plus 3 additional surge suppression only outlets. USB port enables optional unattended system shutdown. PowerAlert software available via free download from www.tripplite.com. Built-in data line suppression for equipment with single line TEL/DSL or network Ethernet. Built-in audible alarm and 5 front panel LEDs. 1500VA power handling ability. Offers 4 minutes battery runtime with a full load of 1500VA and 8.5 minutes with a half load of 750VA. Supports hot-swappable battery replacement via built-in access panel.

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	OMNIVS1500
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	Omni
Product Series	VS
Product Model	OMNIVS1500
Product Name	Omni VS 1500VA Tower UPS
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R
Dataline Protection	RJ-45
Dataline Protection	RJ-11
Transfer Time	4 ms
Power Description
Load Capacity (VA)	1500 VA
Load Capacity (Watt)	940 W
Input Voltage	110 V AC
Input Current	12 A
Output Voltage	120 V AC
Interfaces/Ports
USB	Yes
Battery Information
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	14 Minute
Hot Swappable	Yes
Typical Battery Recharge Time	4 Hour
Physical Characteristics
Height	11.8"
Width	7.3"
Depth	7.5"
Form Factor	Tower
Weight (Approximate)	27.78 lb
Miscellaneous
Package Contents	Omni VS 1500VA Tower UPS USB and telephone cable User manual with warranty information
Country of Origin	China
Warranty
Limited Warranty	3 Year

General Information
Power Rating	1500 VA
Output Voltage Rating	115 V, 120 V
Number of Outputs	8
Runtime-Full Load	4 min
Runtime-Half Load	8.5 min

Tripp Lite's OMNIVS1500 line interactive UPS system offers voltage regulation, surge suppression and battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry-level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 75 and overvoltages up to 147 volts back to usable 120V levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes 6 battery supported outlets for computer, monitor and one vital system peripheral, plus 2 additional surge suppression-only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure.

Device Type	UPS - external
Battery Enclosure Type	Internal
Width	7.2 in
Depth	7.5 in
Height	11.7 in
Enclosure Color	Attractive black
Power Device
UPS Technology	Line interactive
Input Voltage	AC 120 V
Input Voltage Range	AC 75 - 147 V
Frequency Required	60 Hz
Input Connector(s)	1 x power NEMA 5-15
Output Voltage	AC 120 V + 8% / - 18% ( 60 Hz )
Output connector(s)	8 x power NEMA 5-15
Power Output Connectors Details	6 x power NEMA 5-15 ( UPS and surge ) 2 x power NEMA 5-15 ( surge )
Power Provided	940 Watt / 1500 VA
Dataline Surge Protection	Network/phone line
Output Waveform	Sinewave
Surge Suppression	Standard
Surge Energy Rating	510 Joules
Battery
Quantity	2
Technology	Lead acid
Voltage Provided	24 V
Run Time (Up To)	5 min at full load
Recharge Time	4 hour(s)
Networking
Remote Management Interface	USB
Expansion / Connectivity
Interfaces	1 x management - USB - 4 pin USB Type B
Miscellaneous
Cables Included	1 x USB cable 1 x power cable - 6 ft 1 x phone cable
Equipment Protection Value	200000 US Dollars
Features	Audible alarm, Automatic Voltage Regulation (AVR), LED indicators
Compliant Standards	FCC Class B certified, CSA, NOM, UL 1778
Software / System Requirements
Software Included	TrippLite PowerAlert (free download)
Manufacturer Warranty
Service & Support	3 years warranty
Service & Support Details	Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	0 - 95%

Download DataSheet
