AMD EPYC™ 7003 Series Processors - "Milan"
GIGABYTE servers and AMD EPYC 7003 Series Processors deliver the highest possible I/O throughput to pave the way for fast communication between CPU and accelerator in HPC and data analytics.
GIGABYTE Server and GRAID SupremeRAID™ | Solutions that deliver 100% NVMe SSD performance without sacrificing data security
While traditional RAID technology has become the bottleneck of SSD disks, GRAID Technology has developed a disruptive software + hardware solution to unlock the performance bottleneck of RAID protection for SSDs.
GRAID SupremeRAID works by installing a virtual NVMe controller onto the operating system and integrating a PCIe device into the system equipped with a high-performance AI processor to handle all RAID operations of the virtual NVMe controller.
This setup offers many advantages:
Max Memory Speed Even at 2 DPC
With GIGABYTE unique solution, maximum memory speed is now supported, even when using 2 DIMMS per channel. GIGABYTE's server platforms give you the performance edge, with more memory capacity at faster speeds.
Hardware Security | Hardware-level Root of Trust (RoT)
Protection is built in the silicon to ensure systems will not be vulnerable to security attacks or cyber threats. This ROT helps isolate the system as the boot process starts to verify cryptographic operations and ensures the firmware is not compromised by malware.
General Information | |
Manufacturer | GIGABYTE Technology, Inc |

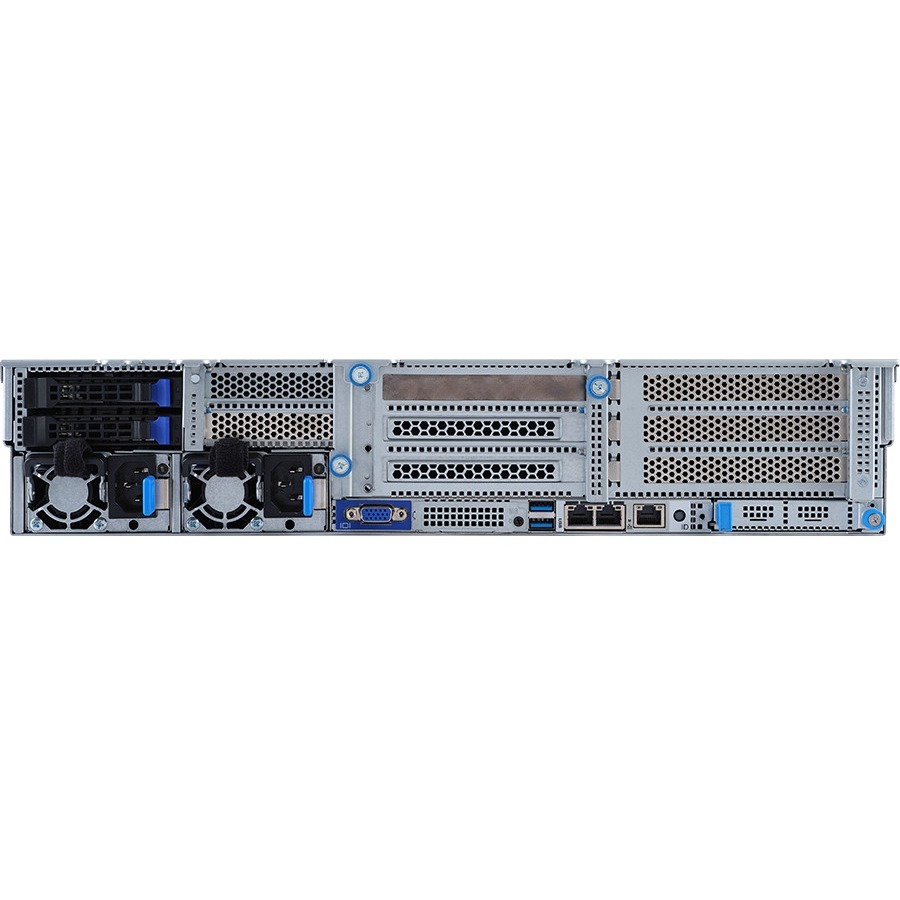

Manufacturer Part Number | R282-Z9G |
Manufacturer Website Address | http://www.gigabyte.us |
Brand Name | Gigabyte |
Product Model | R282-Z9G |
Product Name | R282-Z9G (rev. A00) |
Packaged Quantity | 1 |
Product Type | Barebone System |
Processor | |
Number of Processors Supported | 2 |
Processor Socket | Socket SP3 |
Processor Supported | EPYC |
64-bit Processing | Yes |
Chipset | |
Chipset Manufacturer | AMD |
Memory | |
Maximum Memory Supported | 128 GB |
Memory Technology | DDR4 SDRAM |
Memory Standard | DDR4-3200/PC4-25600 |
Number of Total Memory Slots | 32 |
Controllers | |
Controller Type | 12Gb/s SAS |
Controller Type | Serial ATA/600 |
RAID Supported | Yes |
Display & Graphics | |
Graphics Controller Manufacturer | ASPEED |
Graphics Controller Model | AST2500 |
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
I/O Expansions | |
Number of Total Expansion Bays | 22 |
Number of Internal 2.5" Bays | 22 |
Number of Total Expansion Slots | 1 |
Interfaces/Ports | |
Total Number of USB Ports | 5 |
Number of USB 3.0 Ports | 4 |
Number of VGA Ports | 1 |
Operating System | |
Operating System Supported | Ubuntu 20.04 LTS x64 |
Operating System Supported | Windows Server 2019 |
Operating System Supported | SUSE Linux Enterprise Server 15 SP2 x64 |
Operating System Supported | Windows Server 2016 |
Operating System Supported | Ubuntu 18.04.5 LTS x64 |
Operating System Supported | Red Hat Enterprise Linux 8.3 x64 |
Operating System Supported | SUSE Linux Enterprise Server 12 SP5 x64 |
Power Description | |
Input Voltage | 230 V AC |
Input Voltage | 120 V AC |
Number of Power Supplies Installed | 2 |
Maximum Power Supply Wattage | 1600 W |
Physical Characteristics | |
Form Factor | Rack-mountable |
Rack Height | 2U |
Height | 3.4" |
Width | 17.2" |
Depth | 28.7" |
Miscellaneous | |
Package Contents |
|
Warranty | |
Limited Warranty | 3 Year |
