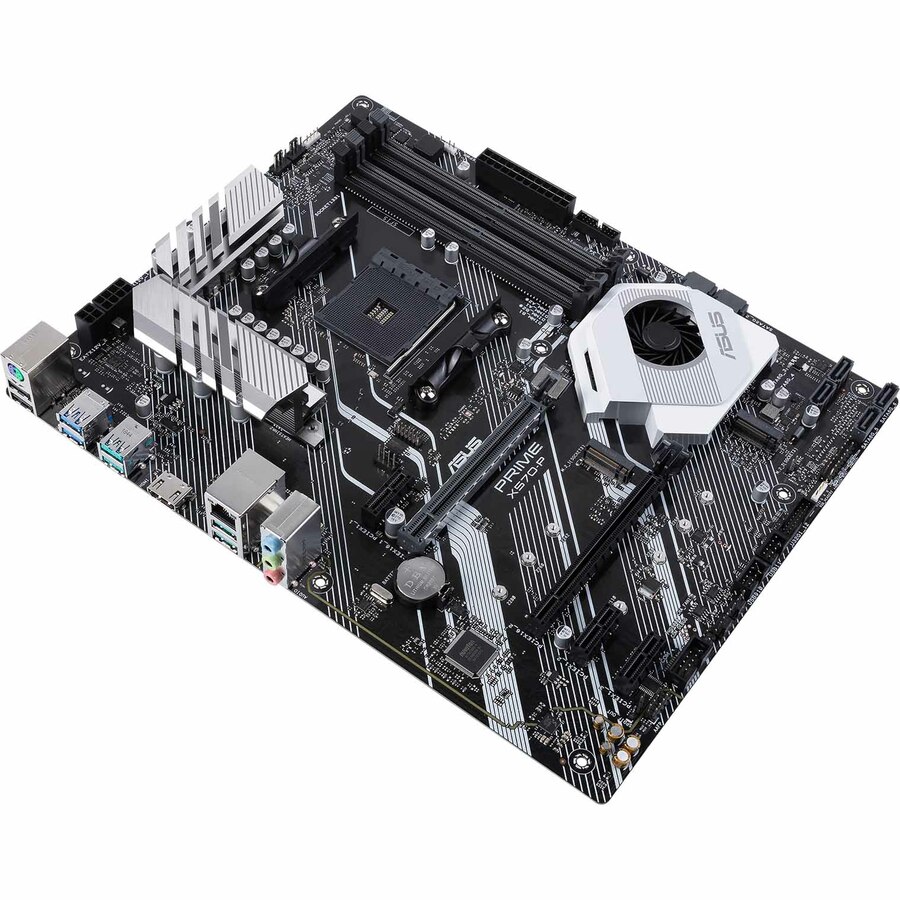

ASUS PRIME X570-P AMD RYZEN 3 AM4 PROCESSORS W DUAL M.2 USB 3.2 GEN 2 &AURASYNC *** Open Box Item ***

Power Delivery Enhancements

Dr.MOS

Prime X570-Pro utilizes 12+2 power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

6-Layer PCB Design

Improved thermal solution
6-layer PCB can quickly dissipate heat around the VRM, improving overall system stability and giving the cPU more overclocking headroom.
Compared with 4-layer PCB, temperature of 6-layer PCB will help decrease up to 30+ ^OC under default operation and 50+ ^OC under CPU OC mode, which can increase the PCB lifespan and reliability.

Active Chipset Heatsink Solution

Dedicated cooling for unthrottled transfers

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Prime X570-Pro features an actively cooled heatsink to prevent throttling during sustained transfers.

Active Chipset Heatsink Solution includes:

• Air Duct: A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
• Finned heatsink: The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
• Custom Delta Superflo Fan: The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 lifespan.

PCIe 4.0 Ready on X570

Prime X570 Series equipped with PCIe 4.0 slots, PCIe 4.0 M.2 slots, 6-layer PCB deliver the best signal quality to enjoy the fastest data-transfer speeds on the 3^rd Generation AMD Ryzen platform.

Addressable Gen 2 RGB header

Prime X570-P's Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Specifications

• Mfr Part Number: PRIME X570-P
• CPU: AMD AM4 Socket for 3rd and 2nd  Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
• Chipset: AMD X570
• Memory:
  • 3rd Gen AMD Ryzen Processors
    - 4 x DIMM, max. 128GB, DDR4 4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ 3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/ 2933/2800/2666/2400/2133  MHz, un-buffered memory
  • 2nd Gen AMD Ryzen Processors
    - 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/ 2933/2800/2666/2400/2133  MHz, un-buffered memory
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133  MHz, un-buffered memory
    - Dual channel memory architecture
    - ECC Memory (ECC mode) support varies by CPU.
    * The maximum memory capacity supported vary depending on the CPU you installed.
• Expansion Slots:
  • 3rd Gen AMD Ryzen Processors
    - 1 x PCI Express 4.0 x16 slot (at x16 mode)
  • 2nd Gen AMD Ryzen Processors
    - 1 x PCI Express 3.0 x16 slot (at x16 mode)
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - 1 x PCI Express 3.0 x16 slot (at x8 mode)
  • AMD X570 chipset
    - 1 x PCI Express 4.0 x 16 slot (max. at x4 mode)
    - 3 x PCI Express 4.0 x1 slots
• Graphics:
  • Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    VGA output support: HDMI port
    Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
• Multi-GPU Support:
  • 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    Supports AMD 2-Way CrossFireX Technology
• Storage:
  • 3rd Gen AMD Ryzen Processors
    - M.2_1 socket 3 with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
  • 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - M.2_1 socket 3 with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
  • AMD X570 Chipset
    - M.2_2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
    - 6 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support
• LAN: Realtek 8111H
• Audio:
  • Realtek S1200A  8-channel* high definition audio CODEC
    - Audio shielding: ensures precise analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: provides warm, natural, and immersive sound with exceptional clarity and fidelity
    - Supports jack- detection and front panel jack-retasking
    * Choose the chassis with HD audio module in front panel to support 8- channel audio output.
• USB:
  • 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - 2 x USB 3.2 Gen 1 (up to 5Gbps) ports (2 ports at back panel)
    - 2 x USB 3.2 Gen 2 (up to 10Gbps) ports (2 ports at back panel)*
    * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors.
  • AMD X570 chipset
    - 2 x USB 3.2 Gen 2 (up to 10Gbps) ports (2 ports at back panel)
    - 4 x USB 3.2 Gen 1 (up to 5Gbps) ports (4 ports at mid-board)
    - 5 x USB 2.0 ports (2 ports at back panel, 3 ports at mid-board)
• ASUS Quiet Thermal Solution:
  • ASUS Fan Xpert 4
  • Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink
• Back I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port
  • 1 x HDMI port
  • 1 x LAN (RJ-45) port
  • 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)*
  • 2 x USB 3.2 Gen 1 (up to 5Gbps) ports (Type-A)
  • 2 x USB 2.0/1.1 ports
  • 3 x Audio jacks support 8-channel audio output
  • * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors .
• Internal connectors:
  • 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 connectors support additional 3 USB 2.0/1.1 ports
  • 1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280 devices support (both SATA & PCIE mode)
  • 1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280/22110 devices support (both SATA & PCIE mode)
  • 6 x SATA 6.0Gb/s connectors (gray)
  • 1 x CPU Fan header (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support
  • 1 x AIO Pump header (4-pin)
  • 3 x Chassis Fan connectors (4-pin) for both 3- pin(DC mode) and 4-pin(PWM mode) coolers control with auto detection support
  • 1 x PCH _FAN connector (4-pin)
  • 2 x Aura RGB headers
  • 1 x Addressable Gen 2 header
  • 1 x COM header
  • 1 x SPI_TPM header
  • 1 x S/PDIF out header
  • 1 x System Panel connector
  • 1 x Front panel audio connector (AAFP)
  • 1 x 24-pin EATX Power connector
  • 1 x 8-pin EATX 12V Power connector
  • 1 x 4-pin EATX 12V Power connector
  • 1 x Clear CMOS jumper
  • 1 x Chassis Intrusion header (layout only)
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability: WOL by PME, PXE
• Accessories:
  • 2 x Serial ATA 6.0Gb/s cables
  • 1 x Addressable RGB header extension cable
  • 1 x IO Shield
  • 1 x M.2 screw package
  • 1 x Support DVD
  • 1 x User's Manual
• Support DVD:
  • Drivers
  • ASUS Utilities
  • EZ Update
• Operating System: Windows 10 64-bit
• Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5cm x 24.4cm)
