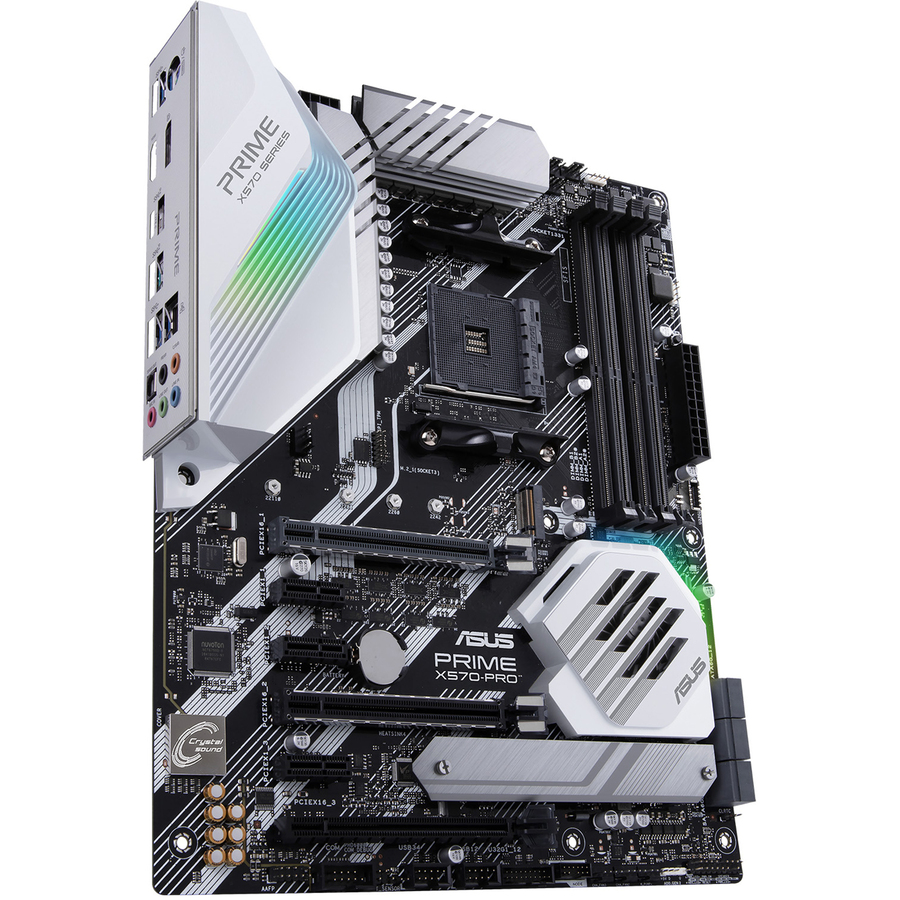

ASUS PRIME X570-PRO AMD RYZEN 3 AM4 PROCESSORS DUAL M.2 USB 3.2GEN2 &AURA SYNC RGB *** Open Box Item ***

Power Delivery Enhancements

Dr.MOS

Prime X570-Pro utilizes 12+2 power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

6-Layer PCB Design

Improved thermal solution

6-layer PCB can quickly dissipate heat around the VRM, improving overall system stability and giving the cPU more overclocking headroom.
Compared with 4-layer PCB, temperature of 6-layer PCB will help decrease up to 30+ ^OC under default operation and 50+ ^OC under CPU OC mode, which can increase the PCB lifespan and reliability.

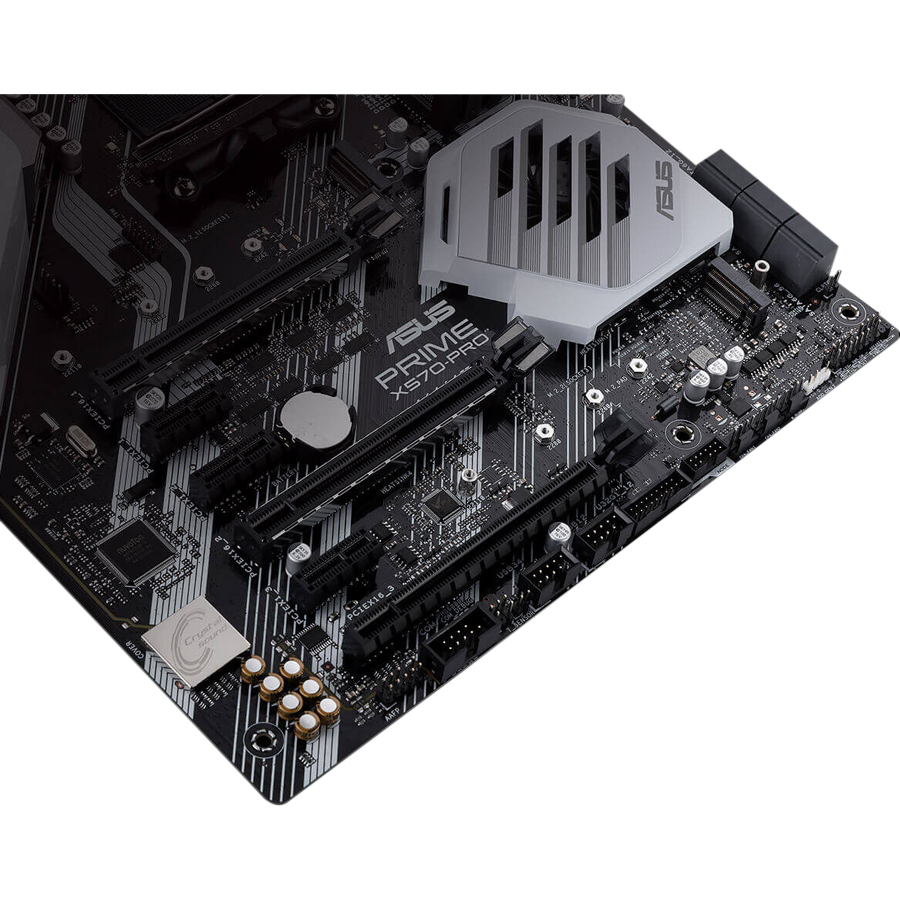

Active Chipset Heatsink Solution
Dedicated cooling for unthrottled transfers

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Prime X570-Pro features an actively cooled heatsink to prevent throttling during sustained transfers.

Active Chipset Heatsink Solution includes:

• Air Duct: A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
• Finned heatsink: The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
• Custom Delta Superflo Fan: The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 lifespan.

PCIe 4.0 Ready on X570

Prime X570 Series equipped with PCIe 4.0 slots, PCIe 4.0 M.2 slots, 6-layer PCB deliver the best signal quality to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

Specifications

• Mfr Part Number: PRIME X570- PRO
• CPU: AMD AM4 Socket for 3rd and 2nd  Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
• Chipset: AMD X570
• Memory:
  • 3rd Gen AMD Ryzen Processors
    - 4 x DIMM, max. 128GB, DDR4 4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733( O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/ 2666/2400/2133  MHz, un-buffered memory
  • 2nd Gen AMD Ryzen Processors
    - 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/ 2800/2666/2400/2133  MHz, un-buffered memory
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133  MHz, un- buffered memory
  • Dual channel memory architecture
  • ECC Memory (ECC mode) support varies by CPU.
  • *The maximum memory capacity supported vary depending on the CPU you installed.
• Expansion Slots:
  • 3rd Gen AMD Ryzen Processors
    - 2 x PCI Express 4.0 x16 slots (single at x16 or dual at x8/x8 mode)
  • 2nd Gen AMD Ryzen Processors
    - 2 x PCI Express 3.0 x16 slots (single at x16 or dual at x8/x8 mode)
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - 1 x PCIe 3.0 x16 slot (x8 mode)
  • AMD X570 chipset
    - 1 x PCI Express 4.0 x 16 slot (max. at x4 mode)
    - 3 x PCI Express 4.0 x1 slots
• Graphics:
  • Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    Multi-VGA output support: DisplayPort/HDMI ports
    Supports DisplayPort 1.2 with max. resolution of 4096 x 2160 @60Hz
    Supports HDMI 2.0b with max. resolution of 4096 x 2160 @60Hz
• Multi-GPU Support:
  • 3rd and 2nd Gen AMD Ryzen Processors
    - Supports NVIDIA 2-Way SLI Technology
    - Supports AMD 3-Way CrossFireX Technology
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - Supports AMD 2- Way CrossFireX Technology
• Storage:
  • 3rd Gen AMD Ryzen Processors
    - M.2_1 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
  • 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - M.2_1 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
  • AMD X570 Chipset:
    - M.2_2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x 4 and SATA modes) storage devices support
    - 6 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support
• LAN: Intel I211-AT Gigabit LAN
• Audio:
  • Realtek S1220A 8-channel high definition audio CODEC featuring Crystal Sound 3
    - Separate layer for left and right track, ensuring both sound deliver equal quality
    - Impedance sense for front and rear headphone outputs
    - Audio shielding ensures precise analog/digital separation and greatly reduced multi-lateral interference
    - EMI protection cover to prevent electrical noise to affect the amplifier quality
    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    - Premium Japanese audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity
    - High quality 120dB SNR stereo playback output (Line-out@back) & 113dB SNR input (Line-in) support
    - Supports up to 32-Bit/192kHz playback*
    - Supports jack- detection, multi-streaming, front panel jack-retasking (MIC)
    - Optical S/PDIF out port at back I/O
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB:
  • 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - 4 x USB 3.2 Gen 1(up to 5Gbps) ports (4 ports at back panel)
  • AMD X570 chipset
    - 1 x USB 3.2 Gen 2 (up to 10Gbps) front connector
    - 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (3*Type A+1*Type C at back panel)
    - 2 x USB 3.2 Gen 1 (up to 5Gbps) ports (2 ports at mid-board)
    - 4 x USB 2.0 ports at mid-board
• ASUS Quiet Thermal Solution:
  • ASUS Fan Xpert 4
  • Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan,PCH and M.2 Heatsink

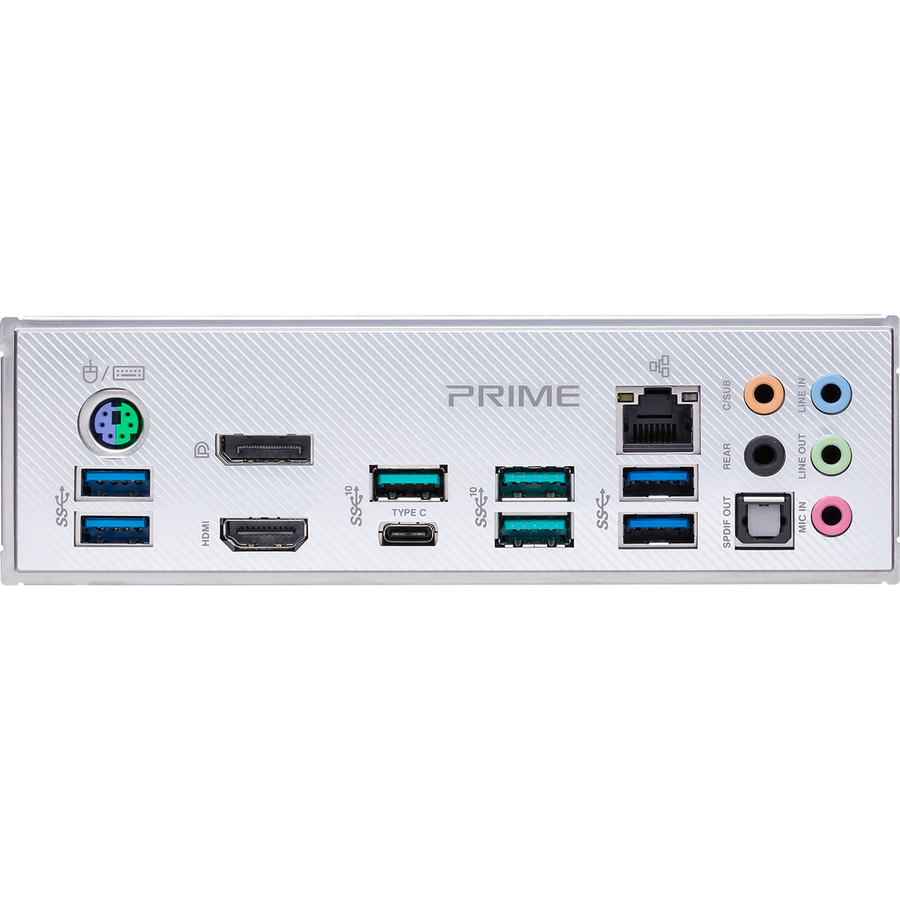

• Back I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Intel LAN (RJ45) port
  • 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
  • 1 x USB 3.2 Gen 2 (up to 10Gbps) port (Type-C)
  • 4 x USB 3.2 Gen 1 (up to 5Gbps) ports (Type-A)
  • 1 x Optical S/PDIF out
  • 5 x Audio Jacks(Line in,Front Speaker Out,Mic in,Center/Subwoofer,Rear Speaker Out)
• Internal connectors:
  • 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
  • 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
  • 2 x USB 2.0 connectors support additional 4 USB ports
  • 1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280/22110 devices support, (both SATA & PCIE mode)
  • 1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280/22110 devices support, (both SATA & PCIE mode)
  • 6 x SATA 6.0Gb/s connectors (gray)
  • 1 x CPU Fan header (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support
  • 1 x CPU OPT Fan header (4-pin)
  • 1 x AIO Pump header (4-pin)
  • 1 x W_PUMP+ header (4-pin)
  • 1 x PCH _FAN connector (4-pin)
  • 3 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control with auto detection support
  • 2 x Aura RGB headers
  • 1 x addressable Gen 2 header
  • 1 x Front panel audio connector (AAFP)
  • 1 x SPI_TPM connector
  • 1 x COM connector
  • 1 x 24-pin EATX Power connector
  • 1 x 8-pin EATX 12V Power connector
  • 1 x 4-pin EATX 12V Power connector
  • 1 x System Panel Connector
  • 1 x Clear CMOS header
  • 1 x Node Connector
  • 1 x Power-on button
  • 1 x T_Sensor Header
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information.
• Manageability: WOL by PME, PXE
• Dimesion:
  • Product (mm): L 305*W 244*H 1.2mm
  • Color box(mm): L 326*W 274*H 68mm
• Weight:
  • Product: 0.967KG
  • Color box: 1.52KG
• Accessories:
  • 2 x Serial ATA 6.0Gb/s cables
  • 1 x ASUS Q-connector
  • 1 x Support DVD
  • 1 x 2-in-1 M.2 screws package
  • 1 x Extension cable for Addressable LED
  • 1 x user's manual
• Support DVD:
  • Drivers
  • ASUS Utilities
  • EZ Update
• Operating System: Windows 10 64-bit
• Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5cm x 24.4cm)
