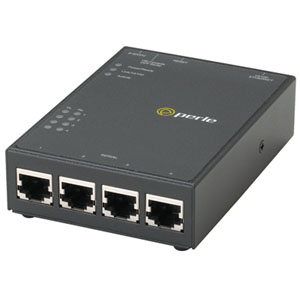

04030304 Perle IOLAN SDS4 4-Port Secure Device Server EIA-232 422 485

Mfg Part Number:  04030304
Image may not reflect the actual item.
Price: $860.71 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 18, 2024
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Perle Systems, Inc
Manufacturer Part Number 04030304
Manufacturer Website Address http://www.perle.com
Brand Name Perle
Product Line IOLAN
Product Model SDS4
Product Name IOLAN SDS4 4-Port Secure Device Server EIA-232 422 485
Product Type Device Server
Processor & Chipset
Processor Speed 66 MHz
Memory
Standard Memory 32 MB
Interfaces/Ports
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 4
Power Description
Input Voltage 30 V DC
Physical Characteristics
Product Color Black
Weight (Approximate) 1.60 lb
Miscellaneous
Package Contents CD, Quick Start Guide, RJ-45 TO DB9M Adapter,
Country of Origin Canada
Warranty
Limited Warranty Lifetime
Additional Warranty Information The Perle IOLAN SDS4 is backed by the best service and support in the industry including Perle's unique lifetime warranty. Since 1976 Perle has been providing its customers with networking products that have the highest levels of performance, flexibility and quality.
product information
Mechanical
Dimensions: WxHxD (mm) 255 x 165 x 26
Mounting Din Rail Mount; Wall Mount
Enclosure Metal
Interface
Serial interface RS232/RS422/RS485
Serial interface number of ports 4
Serial Interface type of connector RJ45
Network interface 1 Port Ethernet RJ45 Connector
Network interface number of ports 1
Network interface type of connector RJ45
Power
Power Input Type -
Operating Supply Voltage 9 to 30 VDC
Power Consumption 1W
Reliability
Operating Temperature 0 to 55C
Isolation Protection -
Surge Protection -
Standards and Certifications Safety UL 60950-1, EN 60950-1, EMC CE, FCC, EMI EN 55022 Class A, FCC Part 15 Subpart B Class A, EMS EN 55024
Web or network enable existing equipment with RS-232, RS-422 or RS-485 serial interfaces quickly and easily. Support for next generation IP (IPv6) for investment protection and network compatibility.These Device Servers have the broadest set of standard and secure feature sets on the market at the most cost-effective price. The IOLAN range provides more functionality than any other product on the market, easing your ability to remotely control, monitor, diagnose and troubleshoot equipment over a network or the Internet.

Product Type: Device Server
Flow Control: Hardware Flow Control
Functions: The IOLAN SDS4 is ideal for connecting serial-based COM port, UDP or TCP socketbased applications to remote devices. Perle's TruePort V5 re-director provides fixed TTYor COM ports to server based applications enabling communication with remotedevices connected to Perle device servers. You can also tunnel serial data betweendevices across an IP network.
Interfaces/Ports: 4 x RJ-45
Management: Web browser or secure web browser via https(SSL/TLS ), Perle DeviceManager software to managesingle or multiple device servers,CLI -Telnet, SSH, shared console portSNMP, MIB II, Perle MIB, read and writeCapabilities,SYSLOG,Port Buffering-local or 3DES encrypted toNFS server
Protocols:
  • TCP/IP
  • ARP
  • RARP
  • UDP
  • ICMP
  • BootP
  • DHCP
  • TFTP
  • Telnet
  • Reverse Telnet
  • DNS
  • HTTP
  • WINS
  • PPP
  • HTTPS
  • SSH
  • CSLIP
  • LPD
  • CIDR
  • SSH v2
  • SMTP
  • PAP/CHAP
    		•
    Security Features: SSHV1 and SSHV2,SSL V3.0/TLS V1.0, SSL V2.0,SSL Server and SSL client mode capability,Encryption: AES (256/192/128), 3DES,DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2),Hashing Algorithms: MD5, SHA-1,RIPEMD160, SHA1-96, and MD5-96,Key exchange: RSA, EDH-RSA, EDH-DSS, ADH X.509Certificate verification: RSA, DSACertificate authority (CA) list, Local database,RADIUS Authentication and Accounting,TACACS+, LDAP, NIS, Kerberos, RSA SecureID-agent or via RADIUSIP Address filtering,Disable unused daemons
    Processor: MPC852T Motorola 66MHz
    Standard Memory: 32MB RAM
    Maximum Memory: 8MB Flash Memory
    Status Indicators: Power/ReadyLink status/Lan SpeedNetwork Link activitySerial : Tx and Rx data
    Input Voltage: 9 V DC to 30 V DC
    Temperature: 32 °F (0.0 °C) Up to 131 °F (55.0 °C)
    Package Contents: CD,Quick Start Guide, RJ-45 TO DB9M Adapter,
    Certifications & Standards: FCC Part 15A, CE, CAN/CSA 22.2, UL60950, EN 55022 Class A, EN 55024 Class A
    Color: Black
    Shipping Dimensions : 2.3" Height x 6.4" Width x 10.0" Depth
    Standard Warranty: Lifetime
    Additional Warranty Information: The Perle IOLAN SDS4 is backed by the best service and support in the industryincluding Perle's unique lifetime warranty. Since 1976 Perle has been providing itscustomers with networking products that have the highest levels of performance,flexibility and quality.
