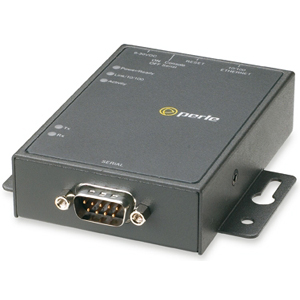

Image may not reflect the actual item.
Price: $321.90
Quantity:
In Stock: 28
Last Updated: May 17, 2024
No Sales Tax except these states
, PO and Wire.
Web or network enable existing equipment with RS-232, RS-422 or RS-485 serial interfaces quickly and easily. Support for next generation IP (IPv6) for investment protection and network compatibility. These Device Servers have the broadest set of standard and secure feature sets on the market at the most cost-effective price. The IOLAN range provides more functionality than any other product on the market, easing your ability to remotely control, monitor, diagnose and troubleshoot equipment over a network or the Internet.
Main Specification
| General Information | |
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 04030124 |
| Manufacturer Website Address | http://www.perle.com |
| Brand Name | Perle |
| Product Line | IOLAN |
| Product Model | DS1 |
| Product Name | IOLAN DS1 Device Serfver |
| Product Type | Device Server |
| Processor & Chipset | |
| Processor Speed | 66 MHz |
| Memory | |
| Standard Memory | 16 MB |
| Interfaces/Ports | |
| Serial Port | Yes |
| Number of Serial Ports | 1 |
| Power Description | |
| Input Voltage | 30 V DC |
| Physical Characteristics | |
| Product Color | Black |
| Height | 0.9" |
| Width | 2.5" |
| Depth | 3.5" |
| Weight (Approximate) | 12.80 oz |
| Miscellaneous | |
| Package Contents | CD, Quick Start Guide, |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
| Additional Warranty Information | The Perle IOLAN DS1 is backed by the best service and support in the industry including Perle's unique lifetime warranty. Since 1976 Perle has been providing its customers with networking products that have the highest levels of performance, flexibility and quality. |
| Mechanical | |
| Dimensions: WxHxD (mm) | 91 x 89 x 24 |
| Mounting | Din Rail Mount; Wall Mount |
| Enclosure | Metal |
| Interface | |
| Serial interface | RS232/RS422/RS485 |
| Serial interface number of ports | 1 |
| Serial Interface type of connector | DB9 |
| Network interface | 1 Port Ethernet RJ45 Connector |
| Network interface number of ports | 1 |
| Network interface type of connector | RJ45 |
| Power | |
| Power Input Type | - |
| Operating Supply Voltage | 9 to 30 VDC |
| Power Consumption | 1.7W |
| Reliability | |
| Operating Temperature | 0 to 55C |
| Isolation Protection | - |
| Surge Protection | - |
| Standards and Certifications | Safety UL 60950-1, EN 60950-1, EMC CE, FCC, EMI EN 55022 Class A, FCC Part 15 Subpart B Class A, EMS EN 55024 |
| Product Type: | Device Server |
| Flow Control: | Hardware Flow Control |
| Functions: | The IOLAN DS1 is ideal for connecting serial-based COM port, UDP or TCP socketbased applications to remote devices. Perle's TruePort re-director provides fixed TTYor COM ports to server based applications enabling communication with remotedevices connected to Perle device servers. You can also tunnel serial data betweendevices across an IP network. |
| Interfaces/Ports: | 1 x DB-9 |
| Management: | Web browser,CLI-Telnet, shared console port,SNMP MIB II, read and write,Perle DeviceManager |
| Protocols: | |
| Security Features: | Local database |
| Processor: | MPC852T Motorola 66MHz |
| Standard Memory: | 16MB RAM |
| Maximum Memory: | 4MB Flash Memory |
| Status Indicators: | Power/ReadyLink status/Lan SpeedNetwork Link activitySerial : Tx and Rx data |
| Input Voltage: | 9 V DC to 30 V DC |
| Temperature: | 32 °F (0.0 °C) Up to 131 °F (55.0 °C) |
| Package Contents: | CD,Quick Start Guide, |
| Certifications & Standards: | FCC Part 15A,CE,CSA,UL 1950,EN 55022 Class A,EN 60950 |
| Color: | Black |
| Dimensions: | 0.9" Height x 2.5" Width x 3.5" Depth |
| Shipping Dimensions : | 3.0" Height x 6.3" Width x 10.0" Depth |
| Standard Warranty: | Lifetime |
| Additional Warranty Information: | The Perle IOLAN DS1 is backed by the best service and support in the industryincluding Perle's unique lifetime warranty. Since 1976 Perle has been providing itscustomers with networking products that have the highest levels of performance,flexibility and quality. |
