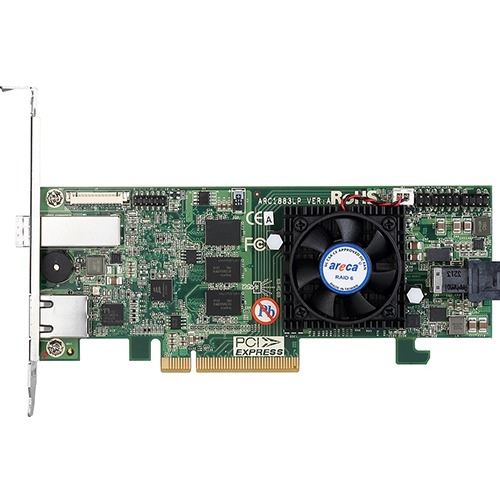

The new third generation ARC-1883 family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture and PCIe 3.0 interface for the most performance-hungry database and IT applications. The ARC-1883 family includes 8 ports low profile as well as full height 12/16/24 internal ports with additional 4 external ports with mini SAS HD connectors for 12Gb/s throughput on each port.
General Information | |
Manufacturer | Areca Technology Corp. |
Manufacturer Part Number | ARC-1883LP |
Manufacturer Website Address | http://www.areca.us |
Brand Name | Areca |
Product Model | ARC-1883LP |
Product Name | ARC-1883LP SAS Controller |
Product Type | SAS Controller |
Technical Information | |
Host Interface | PCI Express 3.0 x8 |
Controller Type | 12Gb/s SAS |
Controller Type | Serial ATA/600 |
RAID Supported | Yes |
RAID Levels | 5 |
RAID Levels | 3 |
RAID Levels | 0 |
RAID Levels | 1E |
RAID Levels | 60 |
RAID Levels | 10 |
RAID Levels | 00 |
RAID Levels | 1 |
RAID Levels | 6 |
RAID Levels | JBOD |
RAID Levels | 50 |
RAID Levels | 30 |
Data Backup Type | NV Cache |
Memory | |
Cache Memory | 2 GB |
Interfaces/Ports | |
Total Number of SAS Ports | 8 |
SAS Connector Details | 1 x SFF-8643 |
SAS Connector Details | 1 x SFF-8644 |
Physical Characteristics | |
Form Factor | Plug-in Card |
Height | 2.5" |
Depth | 6.7" |
Miscellaneous | |
Platform Supported | PC |
Platform Supported | Linux |
Platform Supported | Mac |
Environmentally Friendly | Yes |
