Tripp Lite SmartRack SR42UBEIS Enclosure Rack Cabinet

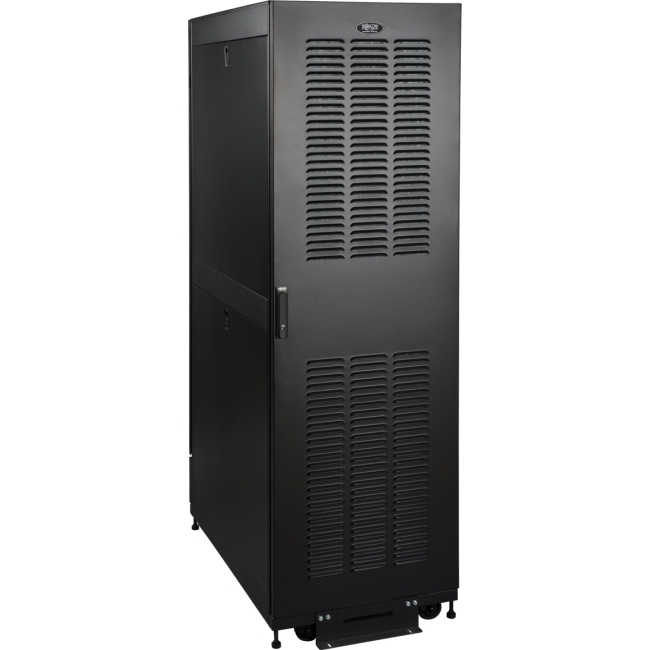

The SmartRack 42U NEMA 12 (IP54) Standard-Depth Rack Enclosure Cabinet protects sensitive electronic equipment from harsh conditions that would overwhelm a typical rack enclosure, including falling dirt, dust, drips and splashes. It is ideal for use in factories, construction areas, utility plants, warehouses and other areas high in moisture, dust and debris. The enclosure has a NEMA 12 protection rating, which is equivalent to IP54. That means it can protect your equipment from falling dirt, dust, drips, splashes and accidental contact with personnel. The front and rear doors have ventilating louvers instead of open mesh. They also have a sealing gasket around the door frames. On the front door there are built-in dust filters. The filters are removable and they can be replaced with standard furnace filters - they're simple, inexpensive and effective. To compensate for the added air resistance of the filters, there are 12 large, high performance fans to the rear door. The fans pull air through the enclosure, from front to rear. The roof of the enclosure is sealed with a cap that keeps drips and falling dirt from getting inside the enclosure. Since the doors and top are sealed, cable access is provided through 6 cable ports - 2 in the roof, 2 below the rear door, and 2 in the unit floor. They allow cables to pass through, but they block the area around the cables maintaining the NEMA 12 protection. The enclosure may be subjected to extreme vibrations and movements produced by vehicles and machinery. The heavy-duty steel frame supports up to 3000 pounds. The large-diameter industrial casters also support up to 3000 pounds, which means you can move the enclosure fully loaded. This is useful where you can install all your equipment in a clean environment, close the enclosure and wheel it to the dirty environment with all your equipment already protected. After the enclosure is in place, the levelers allow you to compensate for minor floor variations and make sure everything is stable. If you need to build a data center in the middle of your factory floor, you can do it with this enclosure. It's perfect for locations like factories, power stations, construction areas, shipping facilities, warehouses, processing plants, transport hubs and anywhere you need to protect equipment in a harsh working environment.

More from the Manufacturer

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SR42UBEIS
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SR42UBEIS
Product Name	SmartRack SR42UBEIS Enclosure Rack Cabinet
Product Type	Rack Cabinet
Physical Characteristics
Color Family	Black
Product Color	Black
Product Material	Steel
Dynamic/Rolling Weight Capacity	3000 lb
Static/Stationary Weight Capacity	3000 lb
Height	79.8"
Width	23.6"
Depth	43"
Rack Height	42U
Rack Width	19"
Weight (Approximate)	310 lb
Miscellaneous
Package Contents	SmartRack SR42UBEIS Enclosure Rack Cabinet Doors Side Panels
Country of Origin	China
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year
