Engineers and Project Managers that require a cost effective 4 or 8 port serial RS232-to-Ethernet solution that maintains serial device protocol integrity across Ethernet must consider the IOLAN STS-D. Having the highest performance processor available along with the Perle's unique TrueSerialTM technology, the IOLAN STS-D will provide the most authentic serial connections across Ethernet. IOLAN STS4-D Serial Terminal Servers are also available with support for Power over Ethernet (PoE).
Main Specification
General Information
Manufacturer
Perle Systems, Inc
Manufacturer Part Number
04030434
Manufacturer Website Address
http://www.perle.com
Brand Name
Perle
Product Line
IOLAN
Product Series
STS
Product Model
STS8-D
Product Name

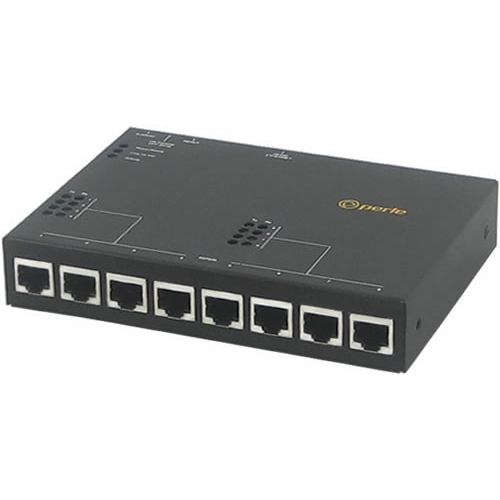

IOLAN STS8-D Terminal Server
Product Type
Terminal Server
Media & Performance
Media Type Supported
Twisted Pair
Network & Communication
Ethernet Technology
Fast Ethernet
Network Standard
10/100Base-TX
Interfaces/Ports
Network (RJ-45)
Yes
Management Port
Yes
Number of Network (RJ-45) Ports
1
Physical Characteristics
Form Factor
Wall Mountable
Form Factor
Rack-mountable
Form Factor
Desktop
Height
1.1"
Width
6.1"
Depth
4.4"
Weight (Approximate)
1.21 lb
Miscellaneous
Package Contents
IOLAN STS8-D Terminal Server
Wall Power Adaptor
Wall mount Bracket
USA Power Cord
Environmentally Friendly
Yes
Country of Origin
Canada
Warranty
Limited Warranty
Lifetime
Mechanical
Dimensions: WxHxD (mm)
260 x 65 x 170
Mounting
Din Rail Mount; Wall Mount
Enclosure
Metal
Interface
Serial interface
RS232
Serial interface number of ports
8
Serial Interface type of connector
RJ45
Network interface
1 Port Ethernet RJ45 Connector
Network interface number of ports
1
Network interface type of connector
RJ45
Power
Power Input Type
-
Operating Supply Voltage
9 to 30 VDC
Power Consumption
1W
Reliability
Operating Temperature
0 to 55C
Isolation Protection
-
Surge Protection
-
Standards and Certifications
Safety UL 60950-1, EN 60950-1, EMC CE, FCC, EMI EN 55022 Class A, FCC Part 15 Subpart B Class A, EMS EN 55024
